Gyroscope

Gyroscope is an inertial sensor developed to determine the angular motion and orientation of an object. This device, based on the tendency of a rotating mass to maintain its axis of rotation, is a fundamental component in applications such as navigation, stabilization, and motion tracking. Today, gyroscopes have been developed using various technologies including mechanical, optical, fiber optic, ring laser, and micro-electromechanical systems (MEMS).

Principle of Operation

Conservation of Angular Momentum

The fundamental principle of the gyroscope is that when a body is given rotational motion, its axis of rotation remains fixed unless an external torque is applied. This behavior is explained by the principle of conservation of angular momentum. A rotating body, due to inertia, tends to maintain its axis of rotation. This principle plays a critical role in navigation and stabilization applications requiring high precision.

Coriolis Effect in MEMS Gyroscopes

In MEMS (Micro-Electromechanical Systems) gyroscopes, vibratory microstructures are subjected to the Coriolis force under rotational motion. This force generates a torque perpendicular to the axis of rotation, modeled as follows:

C_y = -I*\u03c9_z (1)

C_z = I*\u03c9_y (2)

Here, C represents the torque generated in the gyroscope, I denotes the moment of inertia, and ω (omega) represents the angular velocity components. These equations enable precise measurement of angular motion in MEMS systems.

Historical Development

The theoretical foundation of gyroscope technology is based on the laws of motion developed by Isaac Newton in the 17th century. According to Newton’s law of inertia, a body maintains its state of motion unless acted upon by an external force. This principle forms the physical basis for the gyroscope’s tendency to maintain a fixed axis of rotation.

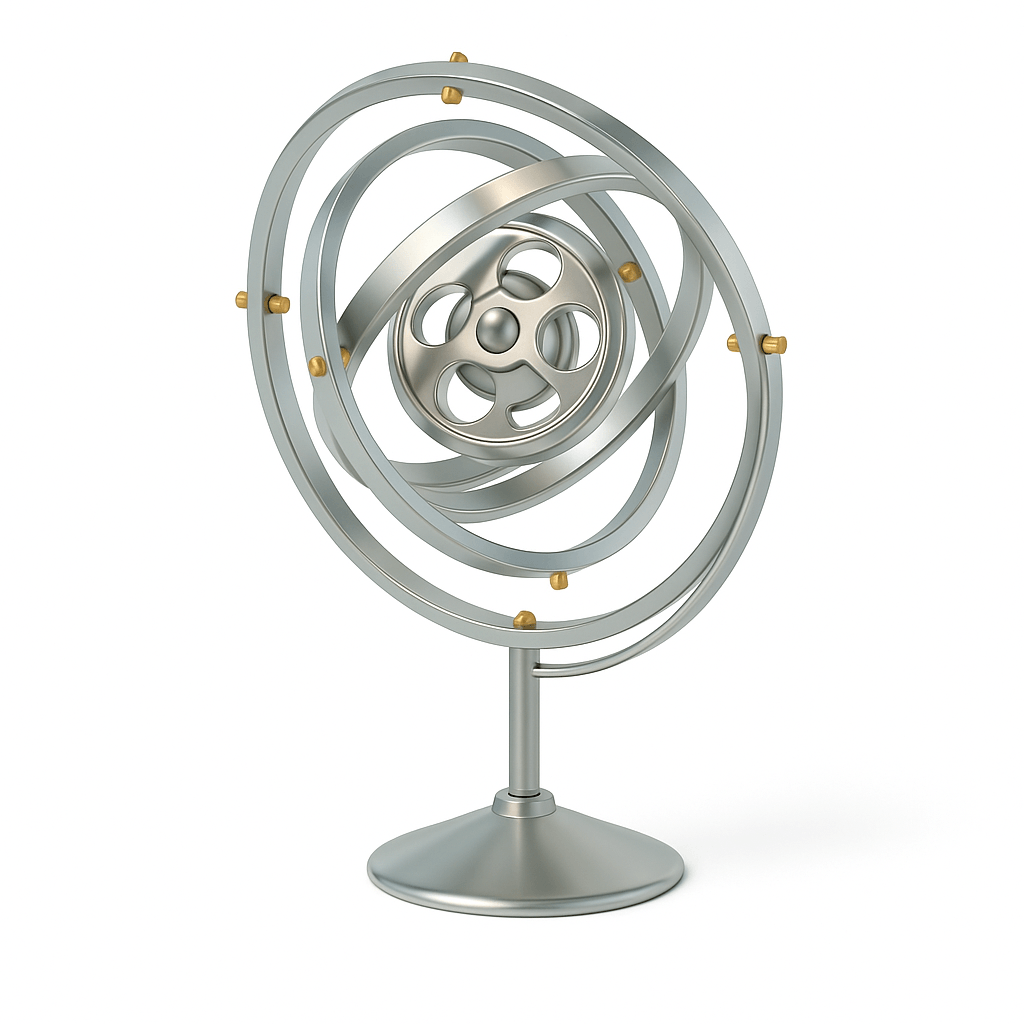

One of the earliest mechanical devices based on gyroscopic principles was the gimbal system, which used nested rings to maintain an object’s orientation in three-dimensional space. Gimbal structures are among the earliest precursors to gyroscope technology due to their role in preserving directional stability.

The term “gyroscope” was first used in 1852 by French physicist Léon Foucault to describe a device designed to experimentally observe the Earth’s rotation around its axis. In Foucault’s system, a spinning disk maintained its axis of rotation due to conservation of angular momentum, thereby making the Earth’s rotational motion visibly apparent.

From the early 20th century onward, gyroscopes began to find practical applications in navigation and stabilization systems. The first commercial gyroscopic compass system, developed by German engineer Hermann Anschütz-Kaempfe, was introduced for maritime use in 1908. Subsequently, gyroscopic autopilot systems developed by Sperry Corporation were adopted in aircraft during the 1920s.

In the 1970s, advances in laser technology led to the development of ring laser gyroscopes (RLG). These systems determine rotational motion by measuring the phase difference created when two coherent laser beams travel in opposite directions around a closed path. RLG systems are resistant to wear due to the absence of moving parts and have been widely used in defense and aerospace applications requiring high accuracy.

Fiber optic gyroscopes (FOG), developed in the 1980s, operate based on the phase difference generated as light travels through a fiber optic coil during rotation. These systems stand out due to their lack of moving parts, low maintenance requirements, and long operational lifetimes.

From the 1990s onward, advances in micro-electromechanical systems (MEMS) technology enabled the production of gyroscopes at a microscopic scale. MEMS gyroscopes detect angular velocity by sensing the Coriolis effect on vibrating microstructures. This design provides cost-effective, compact, and integrated solutions. Today, MEMS gyroscopes are used in a wide range of applications, from portable electronic devices to unmanned aerial vehicles.

Currently, hybrid solutions integrating MEMS structures with optical systems are being developed in gyroscope technology. These advancements enable improvements in environmental resilience, energy efficiency, and sensitivity.

Types of Gyroscopes

Mechanical Gyroscope

Based on a rotating disk and gimbal system. Widely used in traditional maritime and aerospace systems. However, due to moving parts, it is susceptible to wear and easily affected by environmental factors.

Fiber Optic Gyroscope (FOG)

Operates based on the phase difference of light traveling through a fiber optic cable. Rotation alters the travel time of light in opposite directions, and this difference correlates with angular velocity. Provides high precision and durability.

Ring Laser Gyroscope (RLG)

Uses two counter-propagating laser beams to perform an interferometric measurement. The path difference caused by rotation is detected as a phase shift. Preferred especially in military and aerospace applications. However, it suffers from a phenomenon called “lock-in” at low rotation rates, which is mitigated using techniques such as dithering.

MEMS Gyroscope

MEMS gyroscopes use microscopic vibrating structures. The Coriolis force, applied perpendicular to the direction of vibration, is measured to determine rotational motion. Their low cost, light weight, and integrability make them widely used across a broad range of applications, from portable devices to UAVs.

Applications

Gyroscopes serve as essential components in systems requiring measurement of angular velocity and orientation. Technological advancements have led to different gyroscope types offering distinct advantages depending on the application. These sensors are widely used in aerospace, defense, space, robotics, consumer electronics, and healthcare technologies.

Aerospace and Space

Gyroscopes are used in fixed-wing aircraft, helicopters, and spacecraft for attitude control, stabilization, and autopilot systems. They perform critical functions such as artificial horizon generation, horizontal and vertical axis referencing, and rate-of-turn measurement. Ring laser gyroscopes (RLG) and fiber optic gyroscopes (FOG) are preferred in military and commercial aerospace applications requiring high precision.

Defense Systems

In defense technologies, gyroscopes are employed in missile guidance systems, inertial navigation systems (INS), and tank and artillery stabilization systems. In such applications, laser and optical gyroscopes—lacking moving parts, offering long lifespans, and resisting environmental variations—are typically preferred. Systems capable of accurate positioning even in low-acceleration environments provide high-precision navigation solutions.

Unmanned Aerial Vehicles (UAVs) and Drone Systems

MEMS gyroscopes are used in UAVs for real-time orientation and motion control. These sensors provide data on roll, pitch, and yaw axes within PID control loops, helping maintain vehicle stability and direction. They also enhance autonomous flight functions by integrating with GPS data.

Consumer Electronics

Gyroscopes are used in mobile devices such as smartphones, tablets, game consoles, and laptops for screen orientation detection, motion control, and user interface interaction. MEMS-based designs are widely preferred in portable devices due to their low power consumption and compact size.

Wearable Technologies and Healthcare Applications

MEMS gyroscopes are used in healthcare technologies for posture analysis, fall detection, musculoskeletal monitoring, and diagnosis of movement disorders. They are particularly favored for directional motion analysis in evaluating neurological conditions such as Parkinson’s disease. Additionally, they provide biomechanical feedback in athlete performance monitoring systems.

Robotics and Autonomous Systems

Gyroscopes provide orientation data in robotic systems for tasks such as balance control, precise maneuver planning, and motion prediction. In systems such as autonomous ground vehicles and industrial robots, they work alongside other sensors within inertial measurement units (IMUs) to support positioning and stabilization functions.

Future Perspectives and Next-Generation Developments

Next-generation gyroscope technologies aim to produce solutions more resilient to environmental factors such as temperature, electromagnetic interference, and vibration. Hybridization of MEMS gyroscopes with optical systems holds potential for reducing energy consumption while increasing sensitivity.

Gyroscope technology, inspired by fundamental physical principles, is a versatile system with broad applications in both basic sciences and applied engineering. With types ranging from mechanical to microsystems and from optical to laser technologies, gyroscopes perform essential functions in navigation, positioning, stabilization, and motion analysis.
