Impact Test

Impact test is a standardized mechanical testing method used in engineering to measure the mechanical behavior of materials under dynamic and sudden loading. Unlike static loading, impact tests apply sudden high-velocity loads to the material, thereby determining whether the material exhibits ductile or brittle behavior under rapid and high-speed loading. The value representing the material’s resistance to such loads is referred to as impact resistance or impact energy. The importance of these tests in engineering stems from their critical role in determining the ductile-to-brittle transition temperature of materials and in material selection processes.

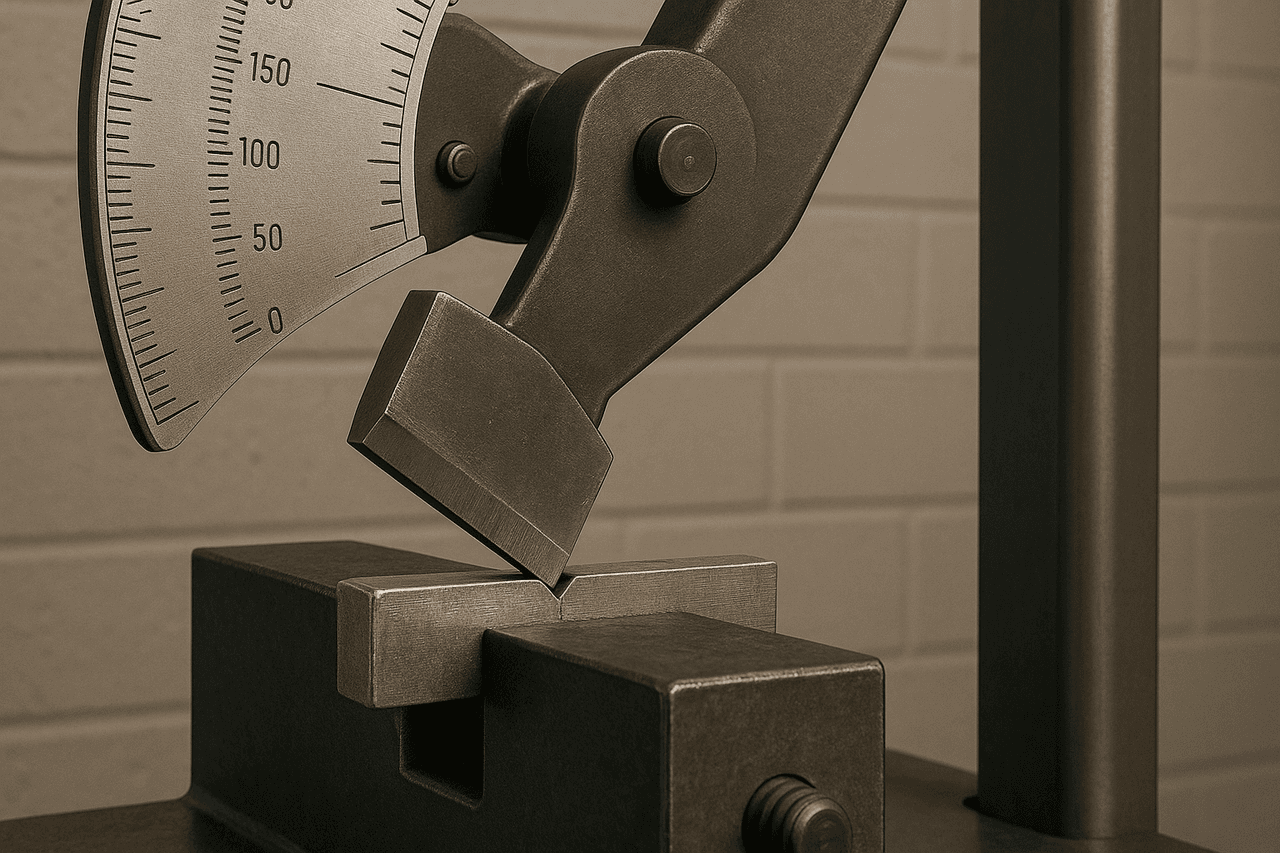

Representative Image of an Impact Testing Machine. (Generated by Artificial Intelligence.)

Historical Development and Significance

The history of impact testing originates from the need in engineering to better understand the fracture behavior of materials. In the early 20th century, the Charpy impact test, developed by Georges Charpy, was the first standardized method for evaluating the fracture toughness of metallic materials. Charpy’s method is based on the principle of abruptly striking notched specimens with a pendulum mechanism under specified standards. Shortly after the development of the Charpy test, the Izod test emerged as a similar method for the same purpose. Today, both test types are standardized worldwide and play a crucial role in quality control processes for materials, particularly in determining the ductile-to-brittle transition temperature of steels. In critical applications such as ships, bridges, pressure vessels, and oil pipelines, the results of impact tests are of great importance for minimizing the risk of sudden fracture.

Purpose and Applications of Impact Testing

The primary purpose of impact tests is to determine the fracture behavior and energy absorption capacity of materials under sudden and high-velocity loading. The results of these tests assist engineers in predicting the durability of products under dynamic loads during material selection and design processes. Impact tests are widely applied across a broad range of engineering applications and are intensively used in the following sectors:

• Metallurgy and Materials Engineering: Used to evaluate the impact resistance and fracture toughness of metallic materials such as steel, aluminum alloys, and titanium.
• Automotive Industry: Employed to study the behavior of vehicle bodies, chassis components, and safety parts under sudden impacts.
• Aerospace and Space Industry: Used to determine the impact and collision resistance of high-strength alloys and composite materials.
• Construction and Building Industry: Applied to analyze the ductile and brittle behavior of steel structural elements and connections.
• Defense Industry: Used to measure the resistance of materials to sudden impacts in ballistic applications and armored vehicle designs.
• Energy Industry: Used to determine the ductile-to-brittle transition temperature of materials used in pressure vessels and energy transmission lines to ensure their safety.

Method and Principle of Impact Testing

One of the most commonly used methods in impact testing is the Charpy test. In this test, a rectangular prism specimen of standard dimensions is prepared with a notch of specific geometry at its center to create a stress concentration. The specimen is placed on horizontal supports, and a pendulum impact machine releases a hammer from a predetermined height to strike the specimen. The energy used to fracture the specimen during impact is measured and recorded as the material’s impact energy. The energy absorbed by the specimen is calculated by subtracting the residual energy of the hammer after fracture from its initial energy.

The notches used in the test are typically V-shaped or U-shaped. Their purpose is to induce stress concentration in the specimen to ensure controlled and standardized fracture initiation. The dimensions of the specimens and the geometry of the notches are defined by standards such as ASTM E23 and ISO 148. In the Charpy test, the pendulum velocity is typically around 5 m/s, simulating the dynamic loading conditions encountered in real-life applications.

Representative Image of a Notch Prepared for Impact Testing. (Generated by Artificial Intelligence.)

Evaluation of Test Results

The primary data obtained from an impact test is the energy absorbed by the specimen during fracture. This energy is typically measured in joules (J), with high energy values indicating ductile behavior and low energy values indicating brittle behavior. Variations in fracture energy with test temperature are used to determine the ductile-to-brittle transition temperature. In steels, for example, ductility decreases at low temperatures, and fracture behavior becomes more brittle. Determining this behavior is essential in engineering design and plays a critical role in ensuring structural safety.

Today, the results of impact tests can also be evaluated using computer-assisted numerical analyses. Simulation methods such as finite element analysis are used to predict the impact behavior of different materials and complex-geometry components in advance.

Relationship with Material Properties

Impact test results are significantly correlated with other mechanical and physical properties of materials. Materials with high impact resistance generally exhibit high fracture toughness, good ductility, and a high elastic modulus. Research has identified statistically significant correlations between impact resistance and properties such as elastic modulus, flexural strength, uniaxial compressive strength, and Shore hardness. These relationships help engineers make more accurate and informed decisions in material selection for various applications. Furthermore, such correlations enable predictions of material performance based on easier-to-measure properties, reducing the need for more expensive and time-consuming direct tests.
