Infrared (IR) Optical Window

Infrared imaging systems are sophisticated technologies that are increasingly finding application in modern engineering solutions. One of the key components in these systems is the optical window. These windows, which establish the connection between the imaging sensor and the external environment, are not merely physical protectors but also active components that directly influence optical performance. In particular, for systems designed to operate in the infrared spectrum, the selection of window material is critical in terms of system efficiency, image quality, and long-term durability.

Generated by artificial intelligence.

The primary function of an optical window is to transmit radiation at the wavelength range of the sensor with minimal loss while providing protection against potential damage from external environmental conditions. In this context, it is not sufficient for the window material to have only high transmittance; mechanical robustness, resistance to scratching and impact, and a low coefficient of thermal expansion must also be considered. When examining the window materials commonly preferred in modern infrared systems, the most popular include germanium, zinc selenide (ZnSe), zinc sulfide (ZnS), sapphire, and chalcogenide glasses.

Germanium stands out due to its broad infrared spectrum coverage and high transmittance, offering exceptionally effective transmission in the 2–14 micrometer range. This property makes it indispensable for thermal cameras and military targeting systems; however, its high density (5.3 g/cm³) and high refractive index lead to significant surface reflection issues that must be carefully managed. These issues can be mitigated through anti-reflective coatings and optimization of other optical system components.

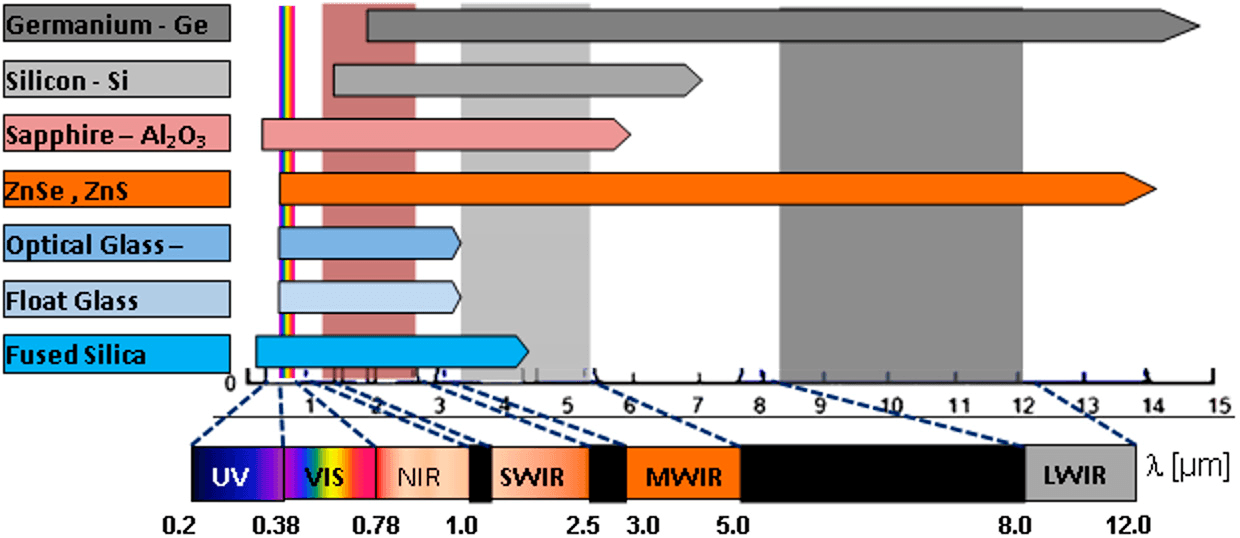

IR Spectrum of Optical Materials (Optical Protective Window Design and Material Selection Issues in Multi-Sensor Electro-Optical Surveillance Systems)

Zinc selenide is a material particularly favored in laser optical systems and medical infrared devices. This crystal exhibits high optical homogeneity and transmits light effectively across a broad band from 0.6 to 16 micrometers. However, due to its structural brittleness and potentially toxic production dust, it requires careful handling during manufacturing. Zinc sulfide is another important material, especially preferred in applications requiring resilience to external environmental conditions and mechanical strength. Its environmental durability exceeds that of zinc selenide, although its transmittance is not as advantageous. Nevertheless, this limitation is partially offset by its improved version known as “Cleartran”.

When hardness is considered, sapphire is the first option that comes to mind. With a Mohs hardness rating of 9, it is highly resistant to scratching and abrasion. However, its transmittance in the longwave infrared (LWIR) region is limited, and it is difficult to machine. Despite this, it is widely used as an outer window in aircraft and missile applications. On the other hand, chalcogenide glasses are preferred in civilian infrared applications and the automotive industry due to their low cost and moldability. However, they have limited hardness and are susceptible to scratching, requiring careful handling.

Lockheed Martin (

To minimize surface reflections across all these materials, various coating technologies are employed. Particularly for materials with high refractive indices such as germanium, surface reflection is pronounced, and anti-reflective (AR) coatings are therefore used to reduce light losses. Single-layer and multi-layer AR coatings are optimized for specific wavelength ranges, while diamond-like carbon (DLC) coatings offer significant advantages in terms of environmental durability. DLC coatings provide high resistance to abrasion and chemical exposure while being formulated to avoid compromising optical transmittance.

In optical window design, thermal effects must also not be overlooked. In infrared systems, the refractive index of the window material can vary with temperature, leading to phase shifts, reduced contrast, and degradation of image sharpness along the optical path. To mitigate such adverse effects, certain design techniques are applied during mounting. Flexible O-ring mountings help minimize stresses caused by thermal expansion. Additionally, parameters such as window thickness, mounting angle, and distance from the lens system must be carefully calculated.

The performance of infrared windows is not limited solely to optical transmission. Surface quality defects originating from manufacturing, such as scratches and polishing marks, can cause light scattering and reduce image contrast. In military applications, compliance with surface quality standards such as MIL-PRF-13830B is critical to system success. Furthermore, in high-speed aerospace platforms, windows must be structurally reinforced through additional mechanical analysis to withstand aerodynamic loads.

In terms of application areas, infrared windows are used across a broad spectrum—from military missile systems to autonomous vehicles, space telescopes to agricultural multispectral imaging systems. For each application, the selection of window material depends on multiple engineering criteria, including not only transmittance but also durability, machinability, resistance to environmental factors, and optical compatibility with the system. In particular, in multi-sensor systems, the window material must be capable of supporting multiple spectral bands simultaneously.

Infrared windows are not merely passive protective elements; they are active optical components that significantly determine system sensitivity and image quality. Material selection, coating technologies, mounting design, and thermal analysis—all these engineering disciplines collectively determine the effectiveness of these systems. As application fields evolve and technological expectations rise, the demand for infrared window materials offering higher performance, lighter weight, and longer service life will become increasingly critical in the coming years.
