Lockheed Martin F-22 Raptor

Lockheed Martin The F-22 Raptor is a single-seat, twin-engine, fifth-generation air superiority war aircraft developed and produced by the American aerospace and defense company Lockheed Martin. The F-22 stands out for its high maneuver capability, advanced avionics, low radar cross-section (RCS), and the ability to cruise at supersonic speeds without using art burner afterburners (supersonic speeds). It was primarily designed to establish air superiority against enemy enemy air forces and secondarily to carry out place strike missions.

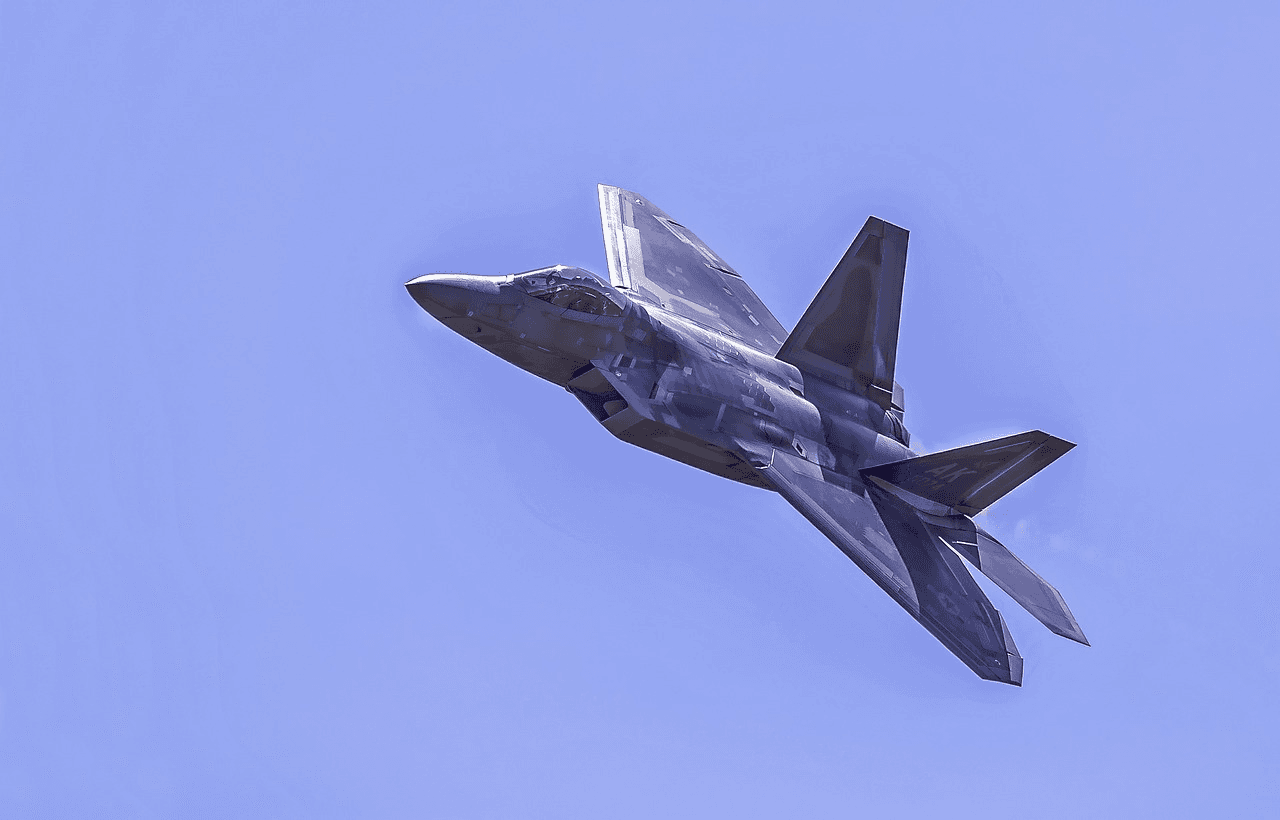

Lockheed Martin F-22 Raptor (Source: Pixabay)

Design and Development

The development of the F-22 began in the late 1980s under the Advanced Tactical Fighter (ATF) program initiated by the Cold War Air Force (USAF) to achieve technological superiority over potential adversaries’ advanced fighter aircraft. In the program led by Lockheed Martin and Boeing, Lockheed’s YF-22 prototype emerged victorious, leading to production under the designation F-22 in 1997. The aircraft’s design aimed to combine low visibility technologies aerodynamics performance to deliver a unique combat capability.

Technical Specifications

• Manufacturer: Lockheed Martin
• First Flight: 29 September 1997 (YF-22 prototype)
• Service Entry: 15 December 2005
• Crew: 1
• Length: 18.9 metres (62 ft 1 in)
• Wingspan: 13.6 metres (44 ft 6 in)
• Height: 5.1 metres (16 ft 8 in)
• Engines: 2 × Pratt & Whitney F119-PW-100 turbofan engines (each producing approximately 156 kN of thrust)
• Maximum Speed: Above Mach 2.25 (2,410 km/h) (supercruise capability around Mach 1.8)
• Service Ceiling: 19,800+ metres (65,000+ feet)
• Range: Over 2,960 km (1,840 miles)
• Armament: Capable of carrying a variety of munitions while preserving stealth through internal weapon bays: 1 × 20 mm M61A2 Vulcan cannon (480 rounds), 6 × AIM-120 AMRAAM air-to-air missiles (air superiority configuration), 2 × AIM-9 Sidewinder air-to-air missiles (close combat), and for air-to-ground missions: 2 × 1,000 lb GBU-32 JDAM or 8 × 250 lb GBU-39 SDB. Although external hardpoints exist, their use reduces stealth characteristics.

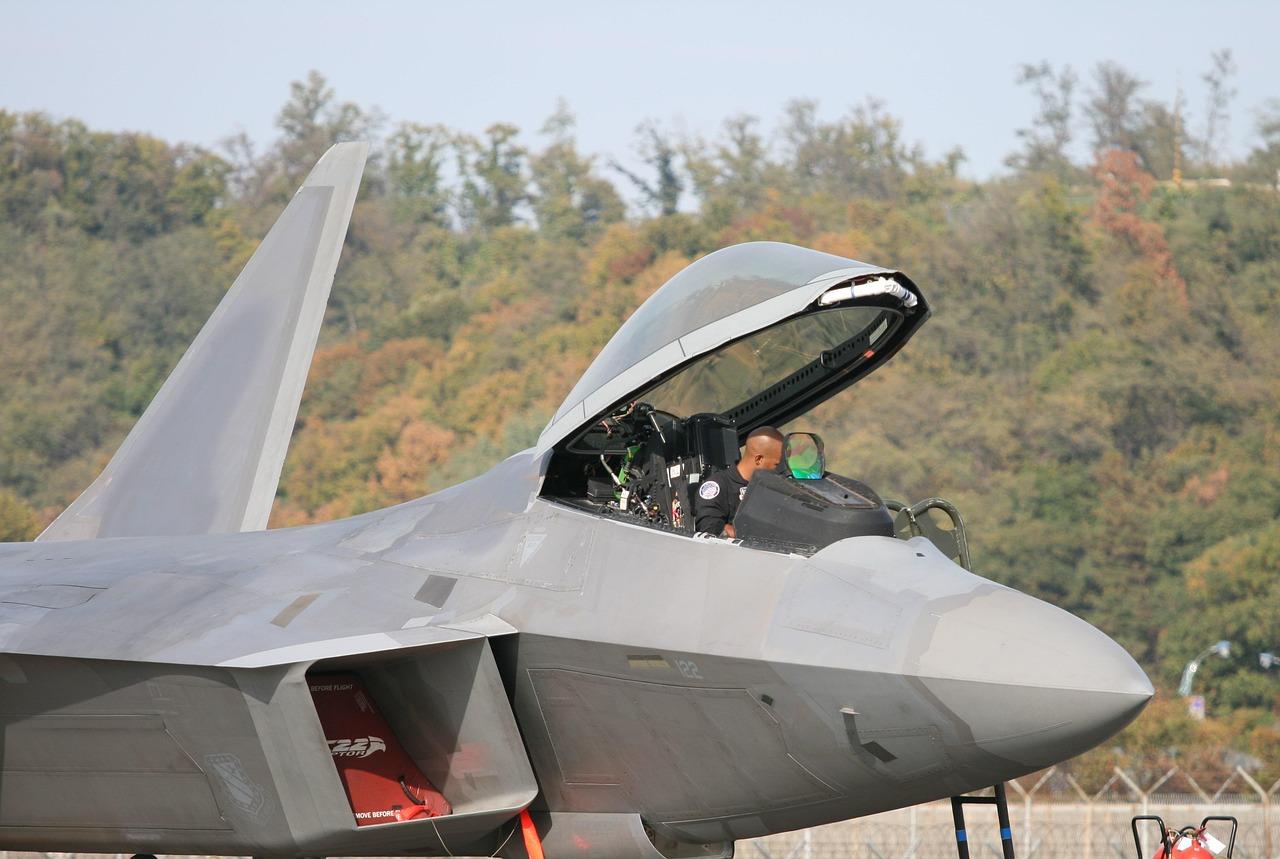

Lockheed Martin F-22 Raptor (Source: Pixabay)

Features and Capabilities

• Stealth: The F-22’s design achieves extremely low visibility to enemy radar through minimized radar-reflecting surfaces, use of radar-absorbent materials (RAM), and optimized airframe shaping. This enables penetration of hostile airspace and surprise attack capability.
• Supercruise: Powered by the powerful Pratt & Whitney F119 engines, the F-22 can sustain supersonic flight around Mach 1.8 without using afterburners. This provides an advantage in outpacing enemy fighter aircraft and rapidly reaching operational areas.
• High Maneuverability: Its two-dimensional thrust vectoring engines and aerodynamic design grant the F-22 exceptional maneuverability at both low and high speeds, offering a critical advantage in within-visual-range air combat (dogfighting).
• Advanced Avionics: The aircraft is equipped with the APG-77 Active Electronically Scanned Array (AESA) radar capable of detecting enemy aircraft at long ranges, electronic warfare systems, and advanced communication and navigation systems.
• Sensor Fusion: Information from multiple sensors—including radar, IRST (Infrared Search and Track), electronic warfare receivers, and data links—is integrated into a single coherent display, significantly enhancing pilot situational awareness and enabling faster, more accurate decision-making.
• Integrated Avionics Architecture: High-speed data buses and powerful processors ensure seamless information flow between different systems.

Operational Use

The F-22 Raptor is operated exclusively by the United States Air Force. Due to its high cost, complex technology, and U.S. concerns over safeguarding technological superiority, it has not been exported to other countries. With only a limited number produced, it plays a critical role in U.S. air superiority missions.
