Ramjet Engines

A ramjet engine is a type of air-breathing jet engine that fundamentally lacks moving parts. Air-breathing jet engines play a vital role in modern aviation and space technologies. These engines generate thrust by using air drawn from the atmosphere and are designed in various configurations to suit different speed and altitude requirements.

The operating principle of a ramjet engine involves capturing air due to the vehicle’s forward motion and compressing it through a specialized inlet duct for combustion. After fuel is injected and ignited, the combustion process continues spontaneously. Like other jet engines, thrust is produced as a reaction to the high-velocity expulsion of hot exhaust gases rearward.

Simple schematic diagram (Source: NASA)

Basic Information on Ramjet Engines

Ramjet engines achieve their highest efficiency at speeds of Mach 2 and above. However, since they cannot produce static thrust, they require an initial mechanism to reach high speeds. Unlike conventional jet engines, ramjet engines have no rotating components such as compressors or turbines. Instead, air is compressed by the forward motion of the engine itself. While this simple design offers production and maintenance advantages, it imposes limitations because ramjets require a minimum forward speed to operate.

The fundamental operating principle of a ramjet engine involves decelerating and compressing a high-speed air stream, mixing it with fuel, igniting the mixture, and finally expelling the hot exhaust gases through a convergent-divergent nozzle. Air enters the engine’s inlet or diffuser section at high velocity. In this section, the airflow is slowed and its pressure increased through a series of shock waves. The compressed air then enters the combustion chamber, where it is mixed with fuel and ignited with the aid of a flame holder.

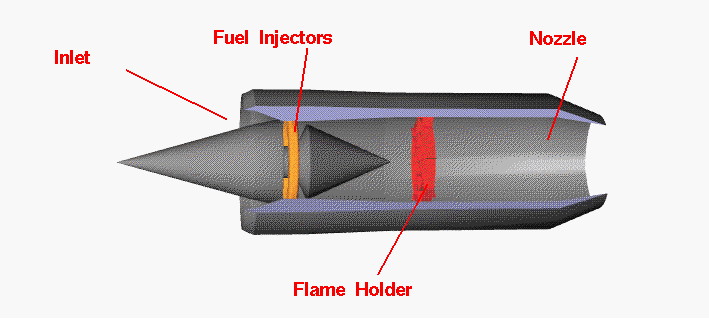

Ramjet engine cross-section (Source: NASA)

The gases produced by combustion, at high temperature and pressure, are expelled at high velocity through the nozzle at the rear of the engine to generate thrust. Ramjet engines require forward motion to operate because air compression is achieved solely through the “ram effect” created by this motion. Consequently, ramjet engines cannot produce thrust at low speeds or when stationary. Like other air-breathing engines, ramjet engines operate on the Brayton cycle, which involves isentropic compression, constant-pressure heating (combustion), and isentropic expansion.

In an ideal ramjet engine, air entering at ambient pressure is isentropically compressed, resulting in an enthalpy increase proportional to its velocity. After the diffuser, energy is added to the air through fuel combustion, increasing enthalpy while pressure remains constant. The combustion products then expand isentropically down to ambient pressure, increasing the exit velocity of the exhaust flow.

In a real engine cycle, however, temperature and pressure losses occur at every stage of the flow through the engine. These losses reduce compression efficiency and consequently decrease the thrust produced. While ideal cycles assume external heat addition at constant pressure, real cycles produce lower pressures due to these losses.

History of Ramjet Engines

1900s – Foundational Theoretical Work

French physicist René Lorin laid the theoretical foundations of ramjet engines in 1913 and obtained a patent for the concept. However, due to the inadequate material technology of the era, a successful prototype could not be produced. In 1915, Hungarian inventor Albert Fonó designed a projectile combining a ramjet propulsion unit to extend the range of artillery shells. This design was presented to the Austro-Hungarian Army but was not accepted.

NASA lab ramjet tests (Source: NASA)

1930s – First Applications and Development

The first practical ramjet designs were developed by British scientist Benjamin Carter and Hungarian inventor Albert Fonó. During this period, Germany, France, and the Soviet Union began research on ramjet engines.

1940s – World War II and First Practical Uses

During World War II, ramjet engines experienced significant momentum. In Germany, Eugen Sänger worked on ramjet engines for high-altitude bombers. The German V-1 flying bomb is regarded as a precursor to modern ramjet engines. Meanwhile, French scientist René Leduc conducted a ground test achieving a speed of Mach 0.9.

V-1 Cruise Missile (Source: National Air and Space Museum)

In the Soviet Union, the world’s first flight of an aircraft powered by ramjet engines was achieved in 1940, using two DM-2 ramjet engines mounted on a Polikarpov I-153DM biplane. In the United States, development of surface-launched supersonic ramjet-powered vehicles began in 1944 at the Applied Physics Laboratory (APL) at the request of the U.S. Navy. These efforts led to the first successful supersonic test flight of the Cobra ramjet in 1945. Subsequently, operational ramjet-powered missiles such as the Talos were developed.

1950–1970 – The Shadow Period and Resurgence of Ramjet Technology

During this period, ramjet engines were overshadowed by other jet and rocket engines. However, interest in ramjet technology revived from the 1960s onward due to Soviet systems such as the SA-4, SA-6, and SS-N-19. Simultaneously, the U.S. Navy’s RIM-8 Talos, introduced in the 1950s, became one of the first operational ramjet-powered missiles and was successfully used during the Vietnam War.

One of the first operational ramjet-powered aircraft was the French-built Leduc 0.10, which made its first flight on 21 April 1949. This aircraft was among the first to fly solely on ramjet power and was air-launched from a carrier aircraft.

Types of Ramjet Engines

Ramjet engines are primarily classified into three types based on combustion speed: subsonic-combustion ramjets, supersonic-combustion ramjets (scramjets), and dual-mode ramjets (DMRs). Subsonic-combustion ramjets reduce the incoming airflow to subsonic speeds before it enters the combustion chamber. These engines typically operate efficiently at Mach 2 and above and are primarily used in missile applications. However, their use today is quite limited. Supersonic-combustion ramjets, or scramjets, operate by maintaining supersonic airflow within the combustion chamber.

Scramjets operate more efficiently at hypersonic speeds of Mach 6 and above and hold potential for future hypersonic aircraft and missile technologies. Dual-mode ramjets (DMRs) are engines capable of operating in both subsonic and supersonic combustion modes. These engines aim to fill the performance gap between conventional ramjets and scramjets by operating efficiently across a wide Mach number range, such as Mach 4 to 8.

(Engine schematic diagram) (Source: NASA)

Key Components of a Ramjet Engine

A ramjet engine consists fundamentally of three main components: the inlet/diffuser, the combustion chamber, and the nozzle. The inlet or diffuser is responsible for slowing down the high-speed incoming air to achieve the high static pressure required for combustion. Inlets vary in type depending on the operational speed range. Pitot-type inlets are used at subsonic and low supersonic speeds, while at high supersonic speeds, conical or sharp-nosed structures create oblique shock waves to enable more efficient air compression.

Shock Waves and Ramjet Engines

Before understanding ramjet engines, it is necessary to introduce the concept of shock waves. When an object moves faster than the speed of sound, the molecules of the surrounding medium cannot move out of its way quickly enough and become compressed. This results in the formation of shock waves. Shock waves are approximately 200 nanometers thick and exhibit high temperature and pressure. Although these waves pose a major obstacle to supersonic objects, ramjet engines exploit them to their advantage.

Inlet design aims to reduce supersonic flow to subsonic speeds while minimizing pressure loss. This is achieved through a series of oblique and normal shock waves. Although isentropic compression is ideal, it is practically unattainable due to the presence of shock waves; therefore, multiple weak shock waves are preferred for more efficient inlet design. The combustion chamber is the section where compressed air is mixed with fuel and ignited, increasing its temperature. It is critical that pressure losses in the combustion chamber are minimized and that fuel burns efficiently.

Due to high air flow velocities, flame holders are used to prevent flame extinction. Ramjet combustion chambers can typically operate safely at stoichiometric fuel-air ratios. The nozzle is responsible for accelerating the high-temperature, high-pressure gases produced by combustion to generate thrust. Subsonic ramjets typically use convergent nozzles, while convergent-divergent nozzles are required for supersonic flight. The nozzle’s geometric design is optimized to maximize the expansion and acceleration of exhaust gases, directly affecting thrust.

Comparison with Other Jet Engine Types

Compared with other jet engine types such as turbojets and turbofans, ramjet engines have distinct advantages and disadvantages. Ramjets are simpler and lighter than turbojets and turbofans because they lack moving parts such as compressors and turbines. However, ramjets cannot produce thrust at takeoff and require an initial speed to operate, necessitating support from rockets or other auxiliary systems. In terms of performance, ramjets are more efficient than turbojets and turbofans at high supersonic speeds (around Mach 3).

Scramjet and ramjet engine comparison (Prepared and edited by Mikdat Ramazan Köşker)

Jet Engines and Ramjet Engines

Conventional Jet Engines

In conventional jet engines, air is drawn in through a fan and directed into a compressor. The compressor increases air pressure using rapidly rotating blades. This pressurized air is then mixed with fuel, ignited, and expelled at high velocity. Turbines located at the exit use the rotating airflow to drive the compressor, ensuring continuous engine operation.

Ramjet Engines

Ramjet engines have no moving compressor or turbine. Instead, air compressed by the motion of the vehicle above the speed of sound is mixed with fuel and ignited.

Ramjet engines consist of nine key components:

• Spike (Cone): Slows down air to increase its pressure.
• Combustor: The section where compressed air is mixed with fuel and ignited.
• Flame Holder: Ensures continuous and stable combustion.
• Fuel Injectors: Deliver fuel into the combustion chamber.
• Fuel Turbopump: Pumps fuel into the system.
• Nozzle: The section through which high-temperature, high-pressure air is expelled.

This process results in the ejection of exhaust gases at high velocity, generating thrust.

Turbojets and turbofans, on the other hand, are more effective at subsonic and low supersonic speeds. Advantages of ramjets include simplicity, high thrust-to-weight ratios at high speeds, and higher specific impulse compared to rockets. Their disadvantages include the inability to produce static thrust and poor efficiency at low speeds.

Advantages and Disadvantages of Ramjet Engines

Advantages

• Simple Structure: Due to the absence of moving parts, they are lightweight, simple, and low-cost.
• Efficiency: Although inefficient at low speeds, they operate more efficiently than conventional jet engines at Mach 3 and above.
• No Compressor Limitations: In conventional jet engines, excessive compressor speeds can reduce mechanical durability. Ramjet engines, lacking compressors, are unaffected by these limitations.

Disadvantages

• Cannot Be Started Stationarily: Ramjet engines require speeds close to or exceeding the speed of sound to operate. Therefore, they are typically initiated using solid-fuel boosters.
• Design Challenges: Ramjet engines are designed for optimal performance within specific speed ranges. Efficiency drops if operating below or above the target speed.
• Limited Speed Range: Ramjet engines operate with high efficiency between Mach 3 and Mach 5, but their performance declines above Mach 5. Scramjet engines are preferred for higher speeds.

Applications of Ramjet Engines

Ramjet engines find application in various fields requiring high-speed flight. A current example in aviation is the hybrid turbojet-ramjet (turboramjet) engine used in the Lockheed SR-71 Blackbird reconnaissance aircraft, capable of speeds exceeding Mach 3. The Nord Griffon aircraft is another example of a supersonic aircraft powered by a turboramjet engine. One of the most important applications of ramjet engines is in missile technology. Ramjet engines are used in numerous missile types, including surface-to-air missiles (Talos, Bloodhound, Sea Dart), air-to-air missiles (Meteor), and cruise missiles (BrahMos).

Solid-fuel ramjets (SFRJs) and integrated rocket-ramjets (IRRs) are now widely preferred in modern missile designs. Ramjet engines also hold significant potential for hypersonic aircraft (Mach 5+), and first-stage space launch systems. Concepts and experimental vehicles such as the Sänger-Bredt bomber, X-43A, and X-51 Waverider exemplify ongoing research and development in this field. Additionally, future projects such as the SR-72 aim to utilize ramjet technology for hypersonic flight.

Recent Developments in Ramjet Technology

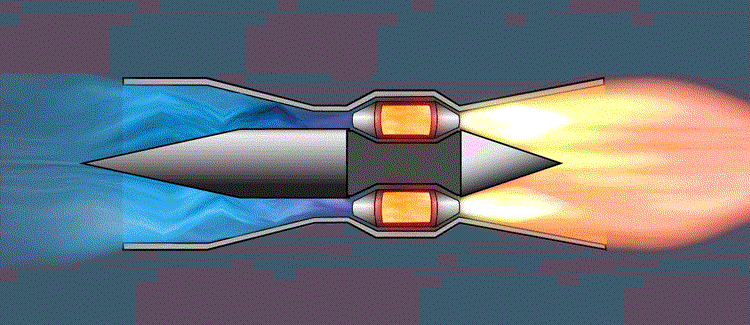

Schematic of a Ramjet Engine (Source:

Recent developments in ramjet and scramjet technology are focused particularly on dual-mode ramjets (DMRJs) and rotating detonation combustion (RDC) technology. DMRJs offer the ability to operate across a broader Mach range, while RDC technology provides higher thrust and efficiency in smaller engine sizes.

Bloodhound BL 64 (Source: Lucern Artillery Association )

In the future, ramjet and scramjet engines are expected to be more widely used in hypersonic passenger aircraft, reusable space launch vehicles, and advanced missile systems. The development of hybrid engines combining ramjets with turbojets or rockets is also a significant trend.

Ramjet engines provide a simple and effective propulsion system for high-speed flight applications. Their low number of moving parts, high thrust-to-weight ratios at high speeds, and higher specific impulse compared to rockets establish ramjets as a critical component in aviation and space technologies.
