Transistor

Transistors are fundamental building blocks of electronics, semiconductor devices that control, amplify, or switch electrical signals. They are typically manufactured from silicon or germanium materials and consist of three terminals.

1. Emitter: The source of electrons, usually a highly doped region.

2. Base: A thin and lightly doped layer that controls the flow of current between the emitter and collector.

3. Collector: A larger, moderately doped region that collects electrons emitted from the emitter.

Principle of Operation

The operation of a transistor depends on the connections between the terminals and the applied voltages. For example, in an NPN transistor, the regions and the associated principle are as follows:

1. Active Region: The emitter-base junction is forward biased and the base-collector junction is reverse biased. In this state, electrons emitted from the emitter reach the base and generate a small current (Ib) through the base. This small current controls a much larger current (Ic) between the collector and emitter. Thus, a small base current enables transistor conduction and regulates a large collector current.

2. Cut-off Region: When the base current is zero, the current flow between the emitter and collector stops and the transistor is in the "off" state.

3. Saturation Region: When the base current is sufficiently high, the transistor fully turns on and the resistance between the emitter and collector drops to a minimum. In this state, the transistor is in the "on" state.

Transistors can function both as switches and as amplifiers due to these operating regions. In particular, they are used as switches in digital electronic circuits and as amplifiers in analog circuits.

Purpose of Transistors

Transistors primarily serve two main functions.

1. Switch: A transistor controls the flow of current in a circuit to represent digital signals (0 and 1). This mechanism forms the fundamental operating principle of computers and digital devices.

2. Amplifier: They convert weak electrical signals into stronger ones. For example, they amplify low-level audio signals from microphones to audible levels through speakers.

Transistors are classified into different types based on their operating principles and structural characteristics. One of the most common types is the metal-oxide-semiconductor field-effect transistor (MOSFET), which is widely used in many electronic devices such as computers, smartphones and televisions.

Transistors Today

The invention of the transistor revolutionized the world by enabling electronic devices to become smaller and more powerful. Today, billions of transistors are integrated into circuits such as microprocessors and chips, forming the foundation of modern electronic devices. This versatile application has made transistors an indispensable component of electronic engineering.

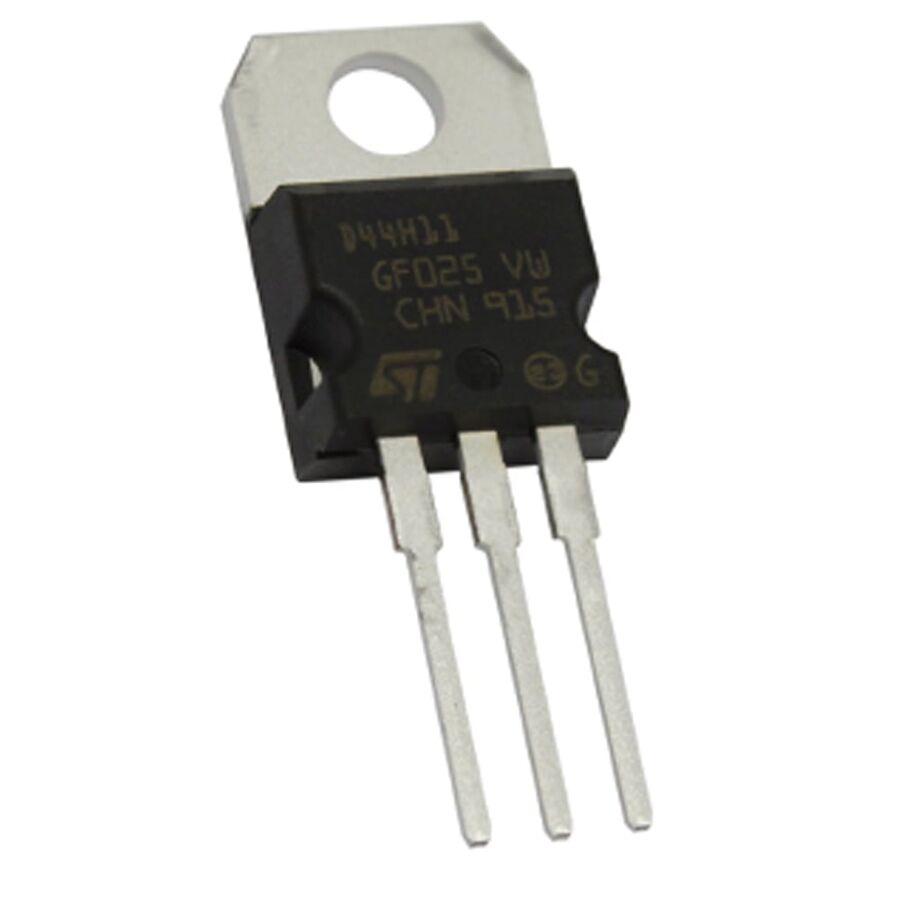

Transistor Image - direncnet
