Turboshaft Engine

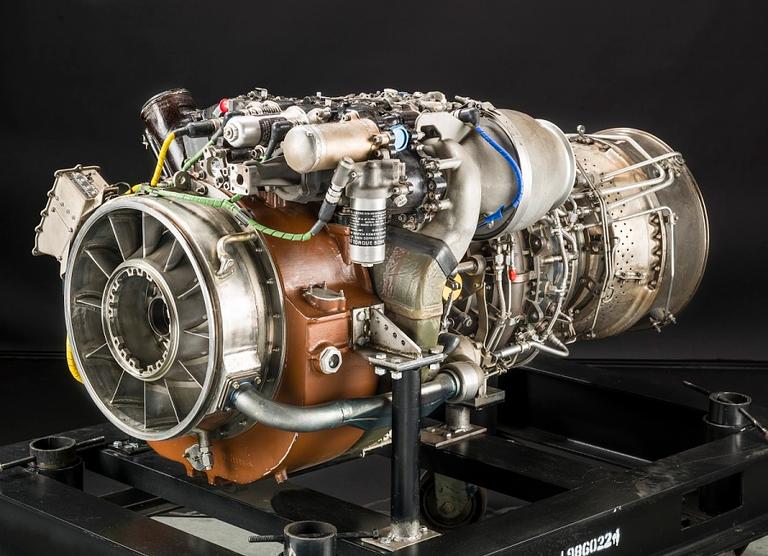

A turbo shaft engine is a type of gas turbine engine specifically designed to produce shaft power. Its primary function is to generate mechanical power from a high-speed rotating shaft and transmit this power to external mechanical systems such as helicopter rotors or fixed generator systems. While thrust is the primary output in aircraft jet engines, rotational power (torque) is the primary output in turbo shaft engines.

Turbo Shaft Engine Operating Principle

Air Inlet

The first stage of a turbo shaft engine is the air inlet, which directs ambient atmospheric air into the engine in a smooth and uninterrupted manner. This inlet features an aerodynamic structure integrated into the airframe of the aircraft or helicopter and is optimized to ensure stable operation under varying altitude and speed conditions. The design objective of the air inlet is to provide a turbulent-free, uniform (laminar), and sufficient airflow.

Functions

1. Direct atmospheric air consistently into the engine. Deliver ambient air, which varies with flight speed and altitude, smoothly to the compressor.
2. Ensure laminar and turbulence-free airflow. Minimize efficiency losses and reduce the risk of compressor stall by providing a clean, disturbance-free flow to the compressor inlet.
3. Minimize pressure losses. Reduce pressure drops caused by friction and expansion or contraction within the air inlet duct to deliver air to the compressor at the highest possible efficiency.
4. Provide protection against foreign object ingestion. Incorporate filters, grilles, or inlet barrier systems to prevent damage from foreign materials such as stones or dust entering the engine.
5. Maintain stable airflow under various flight conditions. Especially on platforms like helicopters, the air inlet system must sustain a uniform airflow required by the compressor even during aggressive maneuvers.
6. Provide suitable air conditions against temperature and humidity variations. Support engine performance under extreme hot, cold, or humid conditions through equipment such as anti-icing systems.
7. Improve acoustic performance with noise-reducing structures. Contribute to noise reduction through specialized linings in the air inlet, which is particularly important in civil aviation applications.

Compressor

The compressor is one of the most critical subsystems in a turbo shaft engine, directly affecting overall engine efficiency, power output, and combustion quality. Its function is to mechanically compress the atmospheric-pressure air received from the air inlet, increasing its pressure and temperature to create an environment conducive to efficient fuel-air mixture combustion.

High-pressure air is mixed with fuel in the combustion chamber, resulting in higher temperatures and greater energy release. This provides more energy to the turbine and increases the engine’s total power output. Therefore, the compressor plays a fundamental role in enabling the thermodynamic cycle of the turbo shaft engine to operate efficiently. The compressor prepares air for the combustion chamber by raising its pressure. Turbo shaft engines typically use axial or centrifugal compressors.

Functions

1. Increase air pressure. The primary function of the compressor is to mechanically compress air taken at atmospheric pressure to raise its pressure, which is necessary for efficient combustion in the combustion chamber.
2. Raise air temperature. The compression process also increases air temperature, which positively affects combustion efficiency by enabling greater energy release. However, temperature rise must be controlled; otherwise, material strength and efficiency may be adversely affected.
3. Direct and accelerate airflow. The rotor and stator blades within the compressor guide and accelerate the airflow in a controlled manner, ensuring the required flow profile at the turbine and combustion chamber inlets.
4. Provide high-flow air supply. Engine power is directly dependent on the amount of air entering the combustion chamber. The compressor enables high power output by supplying the required volume of compressed air.
5. Deliver homogeneous airflow to the combustion chamber. The airflow exiting the compressor must be non-turbulent and uniform (homogeneous). This ensures even mixing with fuel and stable, efficient combustion.
6. Maintain stability across the engine’s operating range. The compressor must be designed to prevent instabilities such as stall or surge, which can disrupt airflow and cause sudden engine shutdown. Therefore, highly stable designs are essential.
7. Adapt to varying flight conditions. Turbo shaft engines operate under variable conditions of altitude, temperature, and engine load. The compressor maintains reliable air compression under these changing conditions to preserve engine reliability and performance.

Combustion Chamber

The combustion chamber is the primary source of the engine’s thrust or shaft power. Air compressed by the compressor is mixed with fuel in this chamber and ignited. The combustion of the fuel-air mixture produces gases at significantly increased temperature and pressure. These high-energy gases are directed toward the turbine blades to convert thermal energy into mechanical energy. The combustion chamber is aerodynamically and thermally optimized to ensure stable and efficient combustion.

Functions

1. Create a fuel-air mixture. Ensure homogeneous mixing of compressed air from the compressor with fuel injected appropriately within the combustion chamber to establish an efficient and stable combustion environment.
2. Maintain stable and continuous combustion. Guarantee uninterrupted flame propagation under varying altitude and engine load conditions to support reliable engine operation.
3. Produce high-temperature gases. Convert chemical energy into thermal energy to provide the kinetic and thermal energy required for turbine rotation.
4. Withstand thermal stresses. Support structural integrity under extreme temperatures through appropriate material selection and cooling systems.
5. Limit noise and emissions. Require specialized burners and low-emission designs to minimize sound levels and harmful gas emissions, reducing environmental impact.
6. Direct gas flow to the turbine. Ensure smooth and controlled delivery of hot, high-pressure gases from the combustion chamber to the turbine, enhancing energy conversion efficiency.
7. Provide compact, high-energy-density design. Deliver maximum energy output within limited volume through a lightweight and dimensionally optimized structure, improving overall engine performance.

Gas Turbine

The gas turbine is a critical component that converts the energy of high-temperature, high-pressure gases produced in the combustion chamber into mechanical energy. Turbine blades are rotated by the kinetic energy of these hot gases, driving both the compressor and supplying energy to the power transmission system. Typically arranged in multiple stages, each stage extracts progressively less energy from the gas stream. Turbine materials are manufactured from specialized alloys resistant to extreme temperatures and thermal shock. Turbine efficiency directly affects the engine’s overall fuel economy and performance. Therefore, aerodynamic design, cooling systems, and material selection are of great importance.

Functions

1. Drive the compressor. Transmit rotational motion mechanically via the shaft to the compressor, ensuring continuous air intake and compression cycles.
2. Generate power. Convert the heat and pressure energy of combustion gases into mechanical rotational energy usable by aircraft or helicopter systems.
3. Direct gas flow. Optimize the direction of high-velocity gases through turbine blade geometry to achieve maximum energy conversion efficiency.
4. Withstand thermal loads. Prevent damage to turbine components using heat-resistant materials and advanced cooling technologies.
5. Control pressure drop. Ensure smooth expansion of high-pressure gases from the combustion chamber as they pass through the turbine, minimizing energy loss.
6. Balance rotational speed. Maintain the turbine rotor speed at levels suitable for both the compressor and the power transmission system.
7. Operate in synchronization with the entire system. Coordinate with the compressor, combustion chamber, and power output structures to enhance overall engine efficiency.

Power Transmission

The power transmission system transfers the rotational energy from the turbine to mechanical systems. It typically consists of a main shaft and various gear systems. In helicopters, this system delivers energy to the main reduction gearbox that drives the rotors. In fixed-wing aircraft, it powers generators, pumps, or thrust systems. An efficient power transmission system increases engine efficiency by minimizing energy losses. It also dampens vibrations and load imbalances to ensure safe engine operation.

Functions

1. Transmit mechanical energy from the turbine. Carry power generation via a rotating shaft to other systems.
2. Adjust reduction ratio. Use gear systems to convert high-speed turbine rotation into appropriate torque and rotational speed for flight systems.
3. Drive helicopter rotors. Provide the correct torque and speed to the rotor system, enabling flight control in helicopters.
4. Operate generators and auxiliary equipment. Supply energy to aircraft electrical systems, hydraulic pumps, and other secondary systems.
5. Reduce vibrations. Dampen oscillations caused by shaft imbalances and sudden load changes to extend system life.
6. Absorb excessive loads. Incorporate clutches or torque-limiting mechanisms to ensure mechanical safety against sudden torque increases.
7. Withstand thermal expansion. Include compensations to maintain proper alignment of components even under high-temperature conditions.

Exhaust

The exhaust section safely and efficiently discharges hot gases exiting the turbine into the atmosphere. It may also direct this gas flow to utilize residual energy for thrust generation. In jet engines, exhaust gases directly contribute to thrust; in turbo shaft engines, this effect is minimal. The exhaust structure is designed to minimize aerodynamic losses. Its materials are resistant to both high temperatures and corrosion. Additionally, the exhaust system helps reduce engine noise.

Functions

1. Safely discharge hot gases. Direct high-temperature gases exiting the turbine in a controlled manner to the external environment, preserving engine integrity.
2. Minimize backpressure. Reduce pressure losses at the turbine outlet through optimized exhaust design, thereby improving engine efficiency.
3. Control noise. Reduce sound intensity through integrated silencers or diffusers, lowering environmental impact.
4. Create directed gas flow. Ensure gases exit at a specific angle and velocity to produce an airflow compatible with the aircraft’s aerodynamics.
5. Withstand high temperatures. Exhaust surfaces exposed to continuous hot gas flow must resist oxidation and deformation.
6. Support engine efficiency. Reduce backflow and energy loss through optimized exhaust design, positively affecting overall engine performance.

Applications and Technical Rationale of Turbo Shaft Engines

Helicopters

Turbo shaft engines are widely preferred in helicopters because they deliver the high torque required to drive rotor systems with low weight.

Technical Rationale

1. High power-to-weight ratio. Critical for enabling vertical takeoff and landing capabilities of helicopters.
2. Compact and lightweight structure. Facilitates easy integration within the airframe.
3. Shaft output compatible with reduction gearbox. Enables direct torque transmission to the rotor system.
4. Excellent load transient response. Delivers stable performance during sudden maneuvers and variable load conditions.
5. Stable performance across wide altitude ranges. Provides operational advantages in military and mountainous regions.

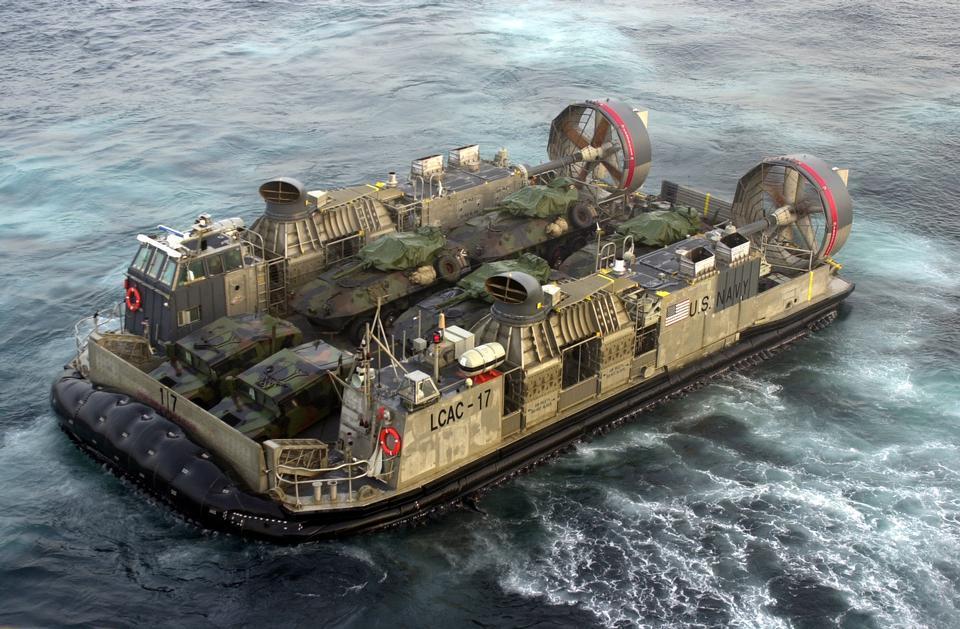

Marine Propulsion Systems

Turbo shaft engines offer ideal solutions for marine platforms with limited space and high power demands.

Technical Rationale

1. Compact and modular design. Enables easy integration into ship engine rooms.
2. High-speed output. Can be easily coupled to propeller systems via gearboxes.
3. High durability. Provides long-term operation under harsh environments such as saltwater exposure.
4. Low vibration and noise. Reduces acoustic signature.

Light Armored Ground Vehicles and Tanks

Turbo shaft engines are used as alternatives to piston engines in some modern tanks and armored vehicles.

Technical Rationale

1. High acceleration capability. Enables rapid speed increases for tanks.
2. Wide fuel compatibility. Can operate on various fuels including jet fuel, diesel, and kerosene.
3. Low maintenance requirements. Provides logistical advantages in combat zones.
