Vega

Vega is a solid-fuel launch vehicle system developed under the leadership of the European Space Agency (ESA) and the Italian Space Agency (ASI), designed to carry small satellites into low Earth orbit. Its name is derived not from the Lebanese scientist Véga de Lyra but from Italy’s definition “Vettore Europeo di Generazione Avanzata” (Advanced European Generation Carrier). Vega was specifically developed to diversify and expand Europe’s launch capabilities, particularly for low-mass payloads.

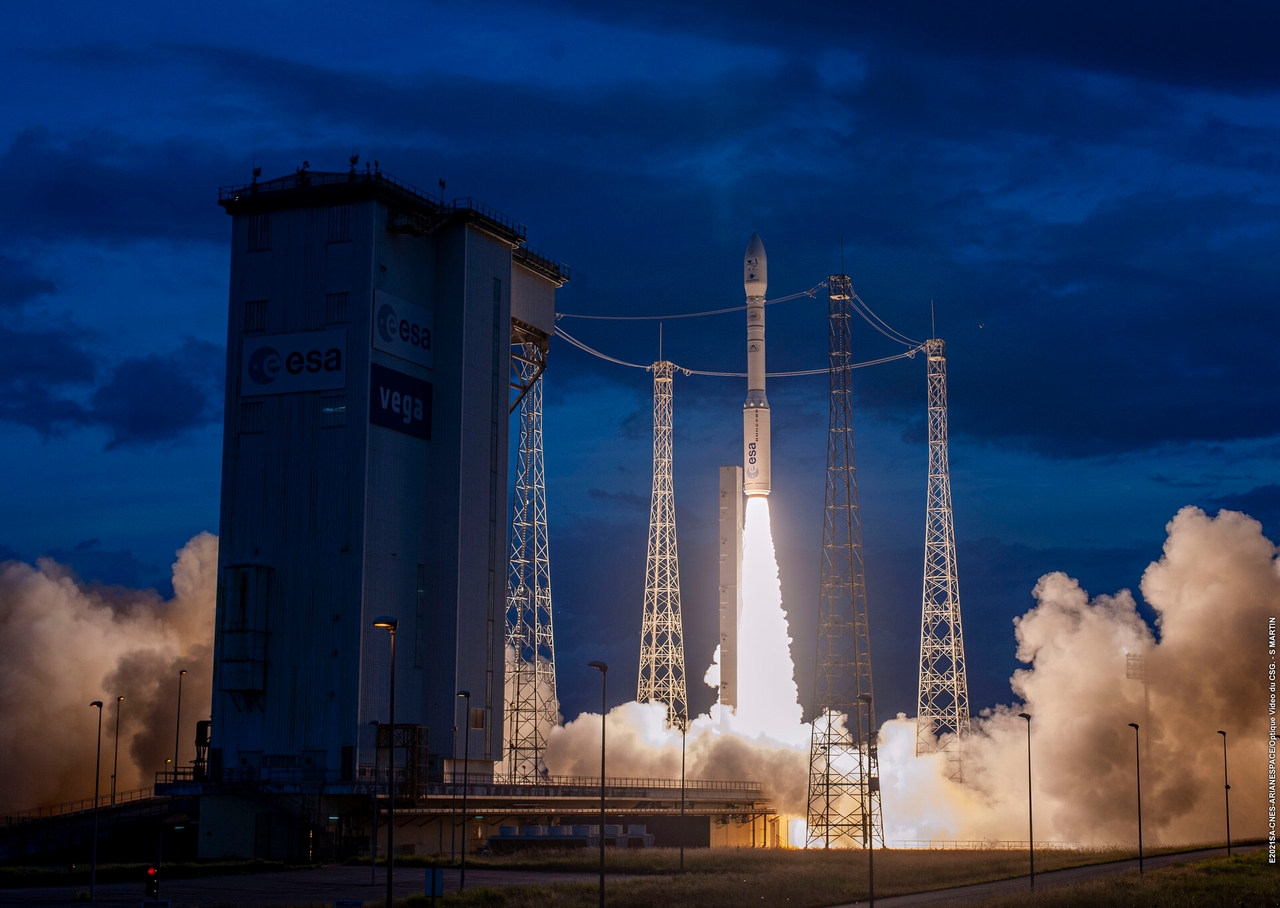

Launch of Vega VV02. (ESA)

Technical Specifications

Vega is a four-stage rocket with three solid-fuel primary stages and a liquid-fuel fourth stage. This configuration provides flexible orbital insertion capabilities for various mission types.

• Length: Approximately 30 metres
• Diameter: 3 metres
• Liftoff Mass: Around 137 tonnes
• Payload Capacity (LEO): ~1,500 kg (at approximately 700 km altitude)
• First Flight: 13 February 2012 (VV01 mission)
• Launch Site: Guiana Space Centre, Kourou, ELA-1 launch pad

Stages

1. P80: The first-stage motor, powered by solid fuel, provides approximately 110 seconds of thrust and serves as the primary source of propulsion.
2. Zefiro 23: The second-stage motor, also solid-fueled, ignites after P80 separation to propel the payload to a higher altitude.
3. Zefiro 9: The third stage, again solid-fueled, plays a critical role in placing the payload into low Earth orbit.
4. AVUM (Attitude Vernier Upper Module): The fourth stage is liquid-fueled (UDMH/NTO) and enables precise attitude control and fine orbital adjustments.

Development History

The development of Vega began in the late 1990s under the ESA program framework. Italy made significant contributions to both the technical and financial aspects of the project. Vega is marketed and operated by Arianespace. During its development, the system was designed specifically to serve ESA’s Small Satellite Missions program and to meet the needs of commercial low Earth orbit missions.

^{The Story of Vega. (}ESA⁾

Mission Profiles

Vega is typically used for the following mission types:

• Deployment of small satellites into low Earth orbit
• Transport of optical or radar observation satellites into polar orbit
• Multiple deployment of light payloads such as CubeSats
• Carrying scientific payloads for microgravity experiments

Vega is particularly favored for observation and scientific missions due to its high-precision orbital insertion capability.

Vega-C and Future Developments

Vega-C is an advanced version of the original Vega system. It completed its first flight on 13 July 2022. Vega-C features a more powerful first stage (P120C) and an upgraded AVUM+ fourth stage, enabling heavier payloads to be delivered with greater precision. The P120C motor is a jointly developed technology also used in the Ariane 6 rocket.

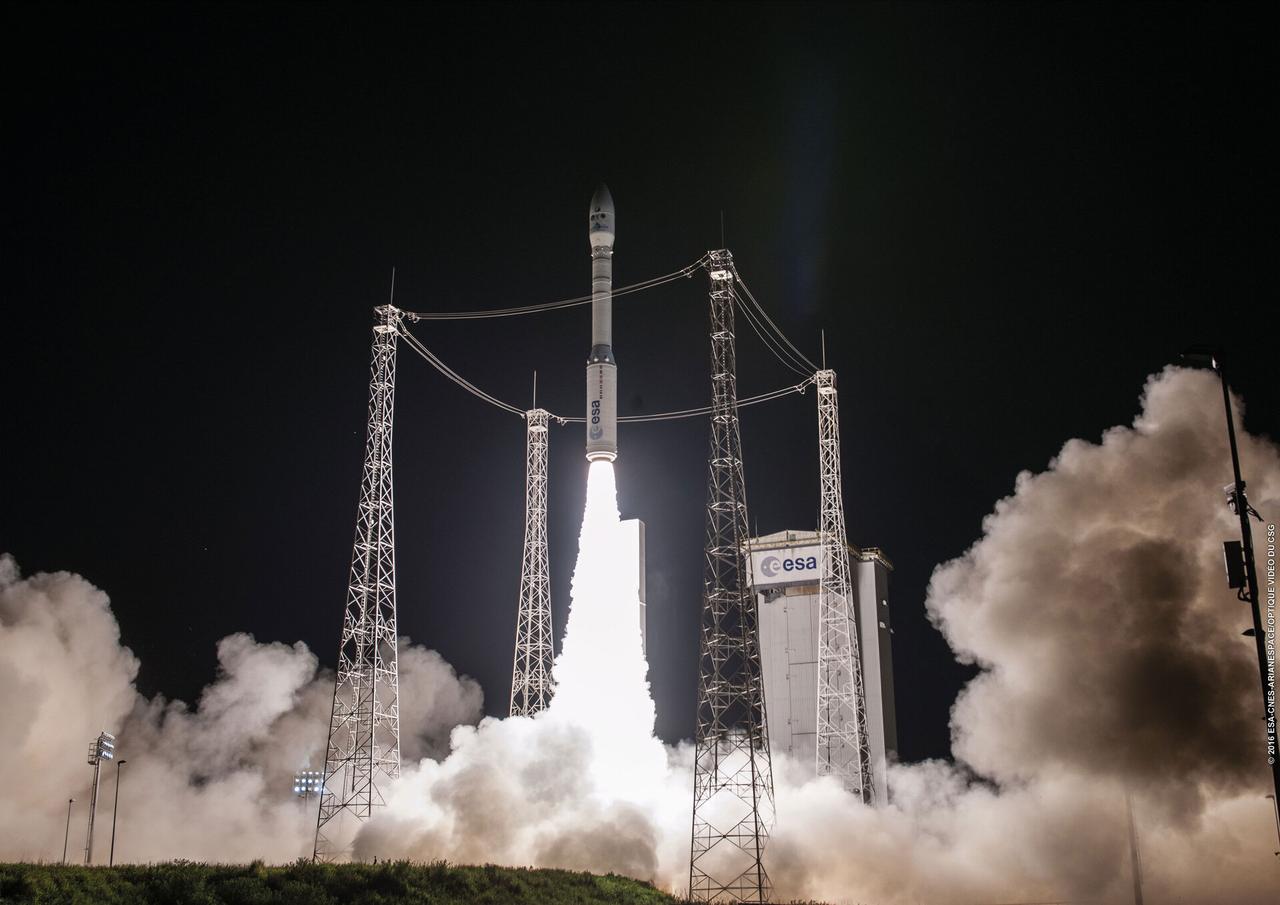

Vega VV07. (ESA)

Successes and Failures

Vega has been used in numerous missions since its first flight. However, its operational history includes several failed missions. Notably, the VV15 mission on 11 July 2019 resulted in payload loss due to an anomaly in the AVUM guidance system. Similarly, the failure on the Vega-C mission of 20 December 2022 was attributed to a manufacturing defect in the second-stage motor.

Production and Operation

Vega is a collaborative project involving a consortium of European companies. Leading the production is Italy’s Avio, with additional subsystem manufacturers from Belgium, France, Spain, and the Netherlands participating. Launch operations are conducted by Arianespace.

Strategic Importance

Vega strengthens Europe’s independent access to space. The growing demand in the small satellite segment has made Vega well-suited for both scientific and commercial missions. Its significantly lower cost compared to heavy-lift vehicles such as Ariane 5 makes it competitive in the global small-payload market.

Vega plays a vital role in Europe’s space transportation systems within the light-payload segment. Designed specifically for low Earth orbit missions, it is suitable for both scientific and commercial applications. With its advanced variant Vega-C, the program aims to achieve higher levels of capacity and reliability. In the coming years, the Vega system is expected to further solidify its position in both the European and global satellite launch markets.
