VGG19

VGG19 is a deep convolutional neural network developed for visual recognition tasks. Proposed in 2014 by the Oxford University Visual Geometry Group (VGG), this model is a deeper variant of VGG16. Comprising a total of 19 layers, its architecture aims to learn more complex patterns by employing small convolutional filters (3×3) in a stacked configuration.

VGG19 Architecture

The VGG19 architecture is based on design principles similar to those of VGG16. Each convolutional layer uses 3×3 filters, which are arranged consecutively. Following each convolutional block are max pooling layers. The final section consists of three fully connected layers.

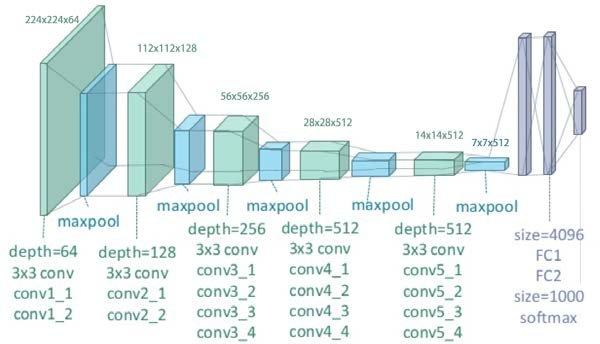

VGG19 Architecture (

The VGG19 architecture enhances feature extraction by achieving deeper layers through consecutive small filters.

Layer Structure

VGG19 contains a total of 19 learnable layers: 16 convolutional layers and 3 fully connected layers.

• Convolutional Layers (16): Consecutive feature extraction is performed using 3×3 filters. A max pooling layer follows each convolutional block.
• Fully Connected Layers (3): These form the final stage where features are prepared for classification.
• Activation Function: ReLU (Rectified Linear Unit) activation is used in every layer.
• Input Size: 224×224×3 RGB images.

Features and Advantages

• Depth: With more layers than VGG16, it can learn more complex patterns.
• Simple and Modular Design: Consistency across layers makes the model easier to understand and modify.
• Compatibility with Transfer Learning: Numerous pre-trained models are available and can be easily adapted to various visual tasks.
• Standardized Input: The model accepts RGB images of size 224×224 as input.

Disadvantages

• High Number of Parameters: VGG19 contains approximately 143 million parameters, making both training and inference computationally expensive.
• Slow Performance: Due to its depth and parameter density, it has longer processing times compared to more recent models.
• Outperformed by Modern Architectures: Contemporary models such as EfficientNet or ResNet can achieve higher accuracy with fewer parameters on similar tasks.

Applications

VGG19 is widely used in various visual tasks, primarily image classification:

• Object classification
• Image segmentation (as a backbone in architectures such as U-Net)
• Medical image analysis
• Face recognition systems
• Transfer learning projects
