Image Processing

Image processing has emerged as one of the most powerful pillars of modern transformation digital. It plays a critical role in fields where both human and machine intelligence together are employed, by converting the limited information perceivable by the human eye into a deeper, more detailed, and computable format.

Image processing is the process of acquiring, processing, and extracting meaningful information from visual data obtained through cameras, sensors, or scanners like. An image is treated as a set of pixels data, each possessing specific color, color and intensity information. By processing this data, objects within the image can be recognized, separated, or measured current state.

How Does Image Processing Work?

The image processing procedure is based on a systematic approach that follows a sequence of specific steps. Process begins with capturing an image from a camera camera or another device. This raw image undergoes various enhancement operations before processing. During this preprocessing stage, noise is reduced, contrast is increased, and overall image quality is improved. Subsequently, the process moves to the feature extraction step to identify meaningful regions in the image. In this stage, prominent structures such as edges and corners are detected. Once features are extracted, the image is analyzed using techniques such as segmentation or classification to produce meaningful results. Finally, the data generated by the processing—presented as graphs or processed images—is delivered to the user. In this way, the image processing workflow is completed, and the resulting information becomes usable in practical applications.

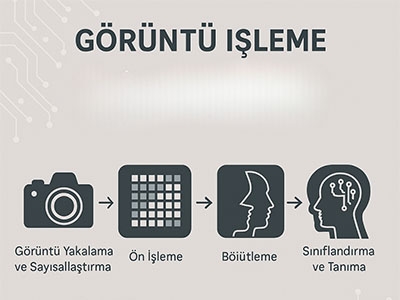

Basic Image Processing Steps

The image processing procedure is shaped through a sequence of fundamental steps that are essential for extracting meaningful and usable information from images, carrying significant importance:

1. Image Acquisition and Digitization

The first step in image processing is obtaining a digital image from a physical environment. This is accomplished using imaging systems such as cameras, scanners, or satellites.

The acquired analog image is converted into a digital format, where each pixel is represented by specific color and intensity values. This digital representation forms a format that can be processed by computers and serves as the foundation for all subsequent steps.

The following Python code demonstrates a simple image processing application that displays live camera footage using OpenCV (cv2) and NumPy.

2. Preprocessing

Various corrections are applied to the digitized image. In this step, noise is removed, the image is converted to grayscale, and techniques such as histogram equalization are used to enhance contrast. Preprocessing ensures that key elements in the image become more distinct and establishes a strong foundation for subsequent operations.

The following output demonstrates noise reduction in an image using OpenCV’s Median Filter method.

3. Segmentation

The image is divided into meaningful regions. For example, in a facial image, areas such as the eyes, nose, and mouth can be separated as distinct segments. Segmentation is a crucial step for identifying or analyzing objects within the image.

The following output demonstrates object edge detection using OpenCV’s Canny edge detection method.

4. Feature Extraction

Structural information from the image is extracted in this stage. Methods such as edge detection, shape determination, tissue analysis, and color histograms are employed here. These features form the dataset used in object recognition and classification tasks.

The following output demonstrates corner detection in objects using OpenCV’s Harris corner detection method.

5. Classification and Recognition

The extracted features are analyzed using machine learning models or artificial neural networks to determine what objects are present in the image. During this process, database comparisons can also be used to perform analyses such as identifying which person a face belongs to or determining whether a cell is cancerous.

6. Interpretation and Visualization of Results

The outputs of the image processing procedure are presented to the user in graphical or numerical formats. These outputs can be utilized in decision support systems or automated control mechanisms.

Applications

Image processing techniques have a broad range of applications in both research and industrial contexts:

• Medical Imaging: Plays a vital role in disease diagnosis and monitoring using MRI, CT, X-ray, and ultrasound images. Applications include tumor detection, vascular analysis, and bone structure measurement.
• Security Systems: Underpin biometric systems such as facial recognition, fingerprint identification, and iris scanning. These systems are used in public spaces, airports, smartphones, and smart home environments.
• Industry and Manufacturing: Image processing systems are employed in quality control to detect product defects. Acting as the eyes of automation systems, they make production lines safer and faster.
• Satellites and Geographic Information Systems (GIS): Satellite images obtained through remote sensing systems can be analyzed to study soil composition, water resources, and urbanization patterns.
• Artificial Intelligence and Robotics: Integrates with deep learning and AI techniques in areas such as learning from images, object recognition, and image-based search.
