Volan

The flywheel is a disk-shaped component that plays a critical role in internal combustion engines by facilitating the initial rotation and balancing the engine’s rotational motion important. It is typically positioned between the engine and transmission. It transmits the torque generated by the starter motor to the crankshaft, which in turn transfers this motion to the pistons via movement crankshaft, enabling the engine to operate. Additionally, the flywheel stabilizes the rotational energy produced by the engine, reduces vibrations, and enhances driving comfort.

Structure and Location

The flywheel is a disk-shaped component, primarily manufactured from steel and mounted at the rear of the engine, directly connected to the crankshaft. The rotational force from the starter motor is transferred to the flywheel via the starter gear, and then to the crankshaft. This transfer initiates the rotation of the crankshaft, bringing the engine to a ready state for operation. The flywheel also functions as part of the clutch mechanism and contributes to torque transmission.

Function

The term “flywheel” originates from the French word “volant”, meaning “that which transmits motion or balances rotational speed” wheel. Flywheels, typically 30–40 cm in diameter, are made from heavy metallic materials such as steel such as. The transmission structure of the vehicle is the primary factor influencing the size of the flywheel.

Flywheels are structurally divided into two main categories:

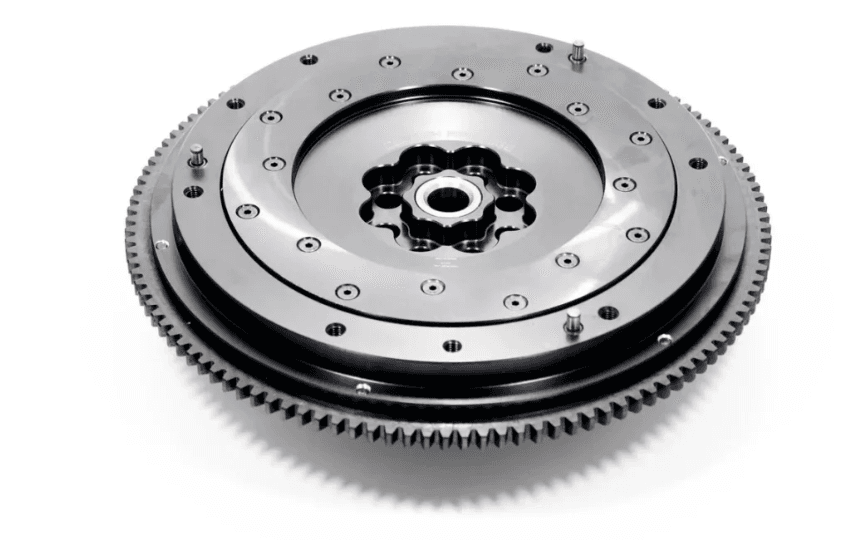

• Single-mass flywheel: Commonly used in vehicles with low torque requirements.

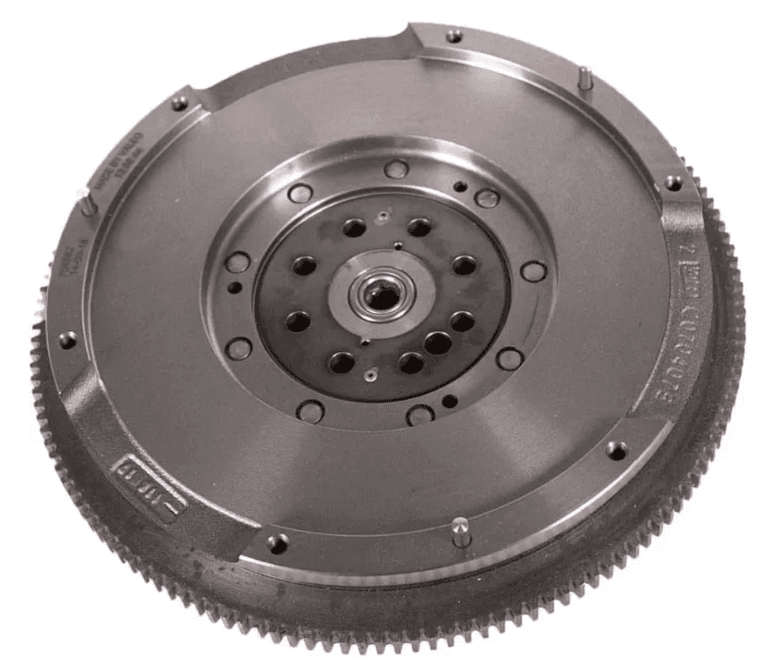

• Dual-mass (vibration-dampening) flywheel: Equipped with vibration-absorbing springs, it is preferred in diesel engines and high-torque vehicles.

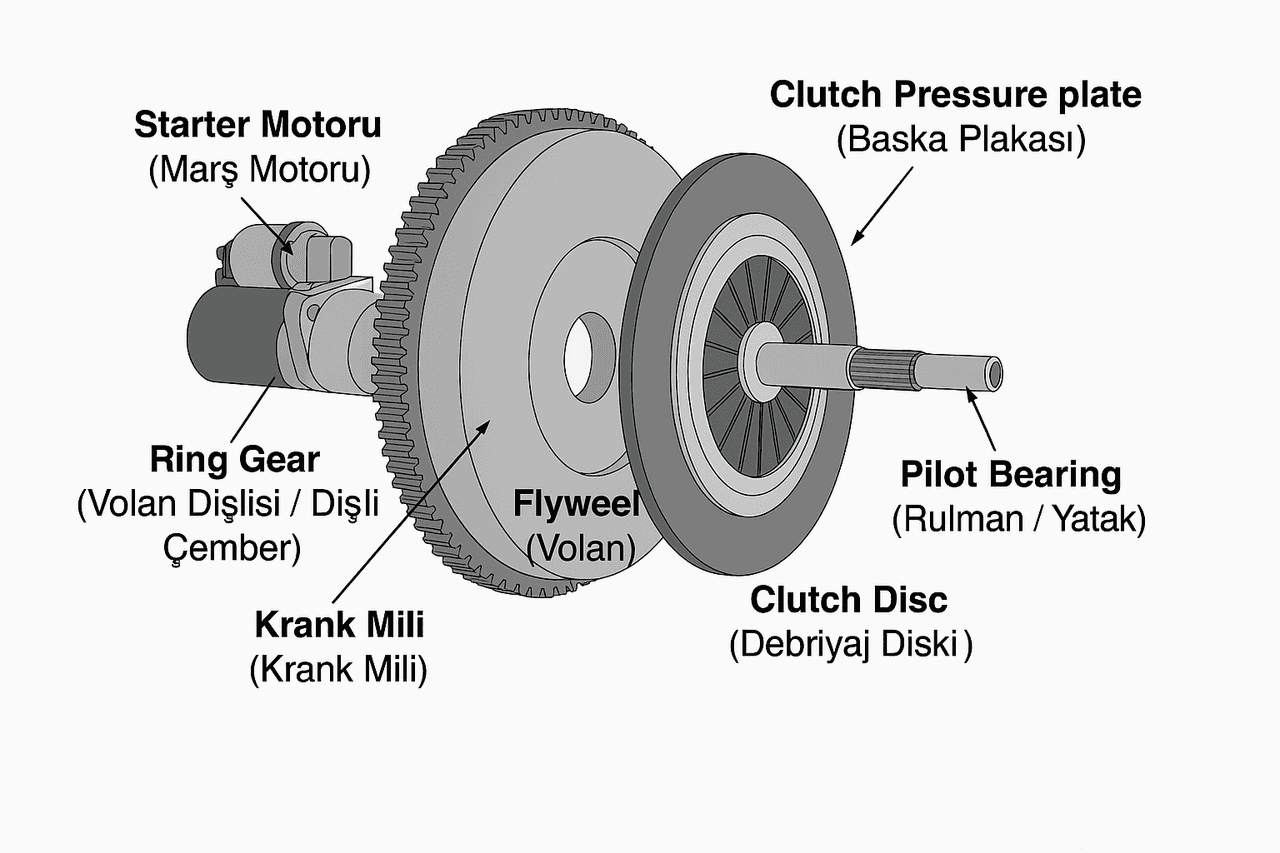

Flywheel Mechanism (AI-Generated Image)

Functions

The functions of the flywheel are multifaceted and closely integrated with several engine mechanisms:

1. Transmitting energy from the starter motor to the crankshaft: When the vehicle is started, the starter motor begins to rotate. This rotational motion is transferred via the flywheel to the crankshaft, causing the pistons to move and initiating the engine’s own operating cycle.
2. Transferring engine motion to the transmission: One surface of the flywheel is connected to the crankshaft, while the other is in contact with the clutch plate. When the clutch pedal is not depressed, rotational force is transmitted to the transmission through the contact between the flywheel and the clutch plate.
3. Stabilizing engine rotational force: Internal combustion engines experience brief interruptions during the four-stroke cycle. During these intervals, the flywheel stores energy to maintain a consistent engine speed and reduce drivetrain vibrations.
4. Reducing vibrations: The crankshaft can generate vibrations due to sudden loads from the pistons. The flywheel’s substantial mass helps balance these vibrations, promoting smoother engine operation.

Symptoms of Failure

Flywheel failure is typically indicated by indirect symptoms, which may be mistaken for other system issues, but the following conditions are particularly indicative:

• Delayed or failed engine cranking,
• Delayed or soft clutch pedal response,
• Vibration and burning odor during vehicle launch,
• Continued friction or rattling noises after the engine is turned off,
• Difficulty shifting gears,
• Audible metal-on-metal scraping sounds,
• Irregular engine noises during operation.

In diesel vehicles, the most prominent sign is the engine’s inability to start on a single crank attempt, accompanied by strong burn odors.

Causes of Damage

Although made from heavy-duty materials, the flywheel can deteriorate over time or due to improper use fault. Major causes of damage include:

• Engaging the starter while the engine is already running,
• Excessive clutch slippage,
• Surface wear due to overheating,
• Extended usage and material fatigue.

Minor surface damage may be temporarily addressed by resurfacing, but cracked or warped flywheels must be replaced immediately piece.

Flywheel Replacement

Flywheel replacement is a complex procedure carried out in several stages:

1. The transmission is removed,
2. The clutch assembly (pressure plate and friction plate) is detached,
3. The flywheel mounting bolts are unscrewed and the component is removed,
4. The new flywheel is carefully installed.

During this process, the clutch system should also be inspected and replaced if necessary together.

Flywheel Replacement and Maintenance

In the event of flywheel failure, replacement is generally recommended over repair. The procedure requires removal of the transmission, extraction of the clutch assembly, and replacement of the flywheel and associated gaskets Change. Due to the technical expertise and specialized equipment required, this work should be performed by authorized automotive service centers information.

The flywheel’s gear ring typically has an average service life of approximately 100,000 kilometers. However, this duration may vary depending on driving habits, frequency of engine cranking, and the load placed on the clutch system load.
