Winglet

A winglet is a wing structure integrated at the tips of fixed-wing aircraft, primarily designed to enhance the aerodynamic efficiency of the aircraft. This concept was first theorized in the 1890s by Frederick W. Lanchester, but it was developed in its modern form in the 1970s by NASA engineer Richard T. Whitcomb. Winglets are engineered to reduce vortices formed at the wingtip, which cause induced drag. These vortices are turbulent air movements created by air flowing from the high-pressure region beneath the wing to the low-pressure region above it, in accordance with Bernoulli’s principle.

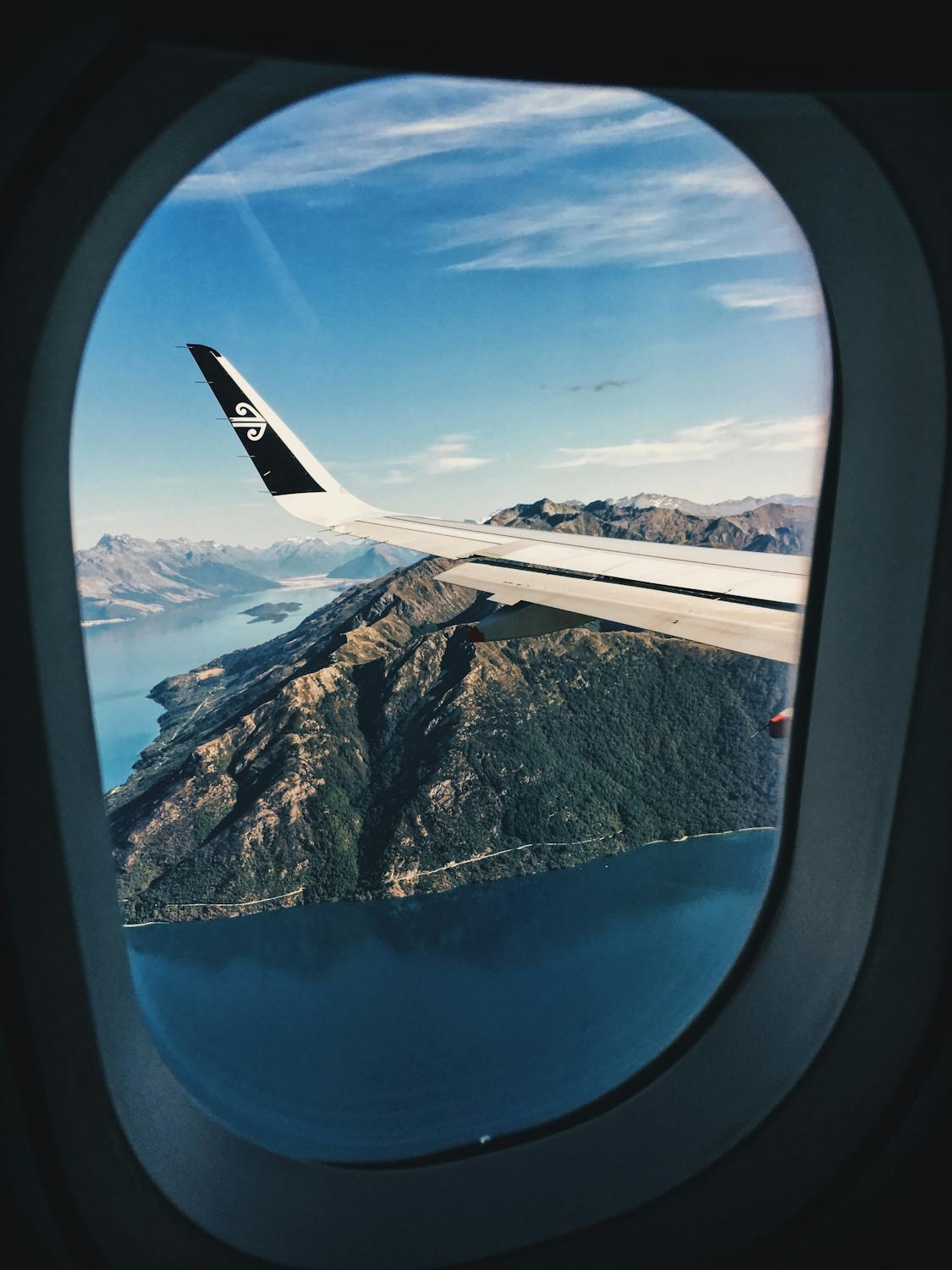

B737 Winglet ()

History

The origins of the winglet extend to the late 19th century. In 1897, British engineer Frederick W. Lanchester proposed attaching vertical plates to the tips of aircraft wings to reduce drag caused by wingtip vortices. He also obtained the first patent based on this idea in the same year. However, his concept was not practically implemented at the time and attracted limited interest. The first person to integrate the winglet concept into flight was Scottish engineer William Sommerville in 1910. Sommerville’s design is considered one of the functional precursors to modern winglets. During World War II, some German aircraft, particularly the Heinkel He-162A, featured downward-curved wingtips known as “Lippisch ears.” Although these structures offered aerodynamic advantages, they did not gain widespread adoption in civil or military aviation after the war.

The modern winglet was introduced to the aviation industry in the 1970s. Following the global oil crisis of 1973, the demand for fuel efficiency increased. In response, NASA launched the Aircraft Energy Efficiency (ACEE) program to improve aircraft energy efficiency. As part of this program, engineer Richard T. Whitcomb at the Langley Research Center revisited Lanchester’s concept and developed an aerodynamically optimized winglet design with an upward-curving profile.

Whitcomb’s 1976 publications predicted that this design could reduce induced drag by up to 20 percent. Subsequent tests confirmed this estimate, leading to rapid adoption of winglets in civil aviation. By the 1980s and 1990s, winglets became widespread on large passenger aircraft and business jets, and today they are a standard aerodynamic component in modern aviation.

Working Principle

Aircraft fly primarily through a lift mechanism based on Bernoulli’s principle and Newton’s third law. Air flows faster over the upper surface of the wing, resulting in lower pressure, while air moves more slowly beneath the wing, creating higher pressure.

During flight, high pressure forms on the lower surface of the wing and low pressure on the upper surface. Due to this pressure difference, air tends to flow from the underside to the top side of the wing, particularly around the wingtip. This movement generates vortices known as “wingtip vortices” behind the aircraft. These vortices create turbulence, resulting in an additional form of drag called induced drag. Induced drag requires the engines to produce greater thrust, thereby increasing fuel consumption. Winglets address this issue by reducing the effects of the pressure differential at the wingtip, weakening the vortices and minimizing drag.

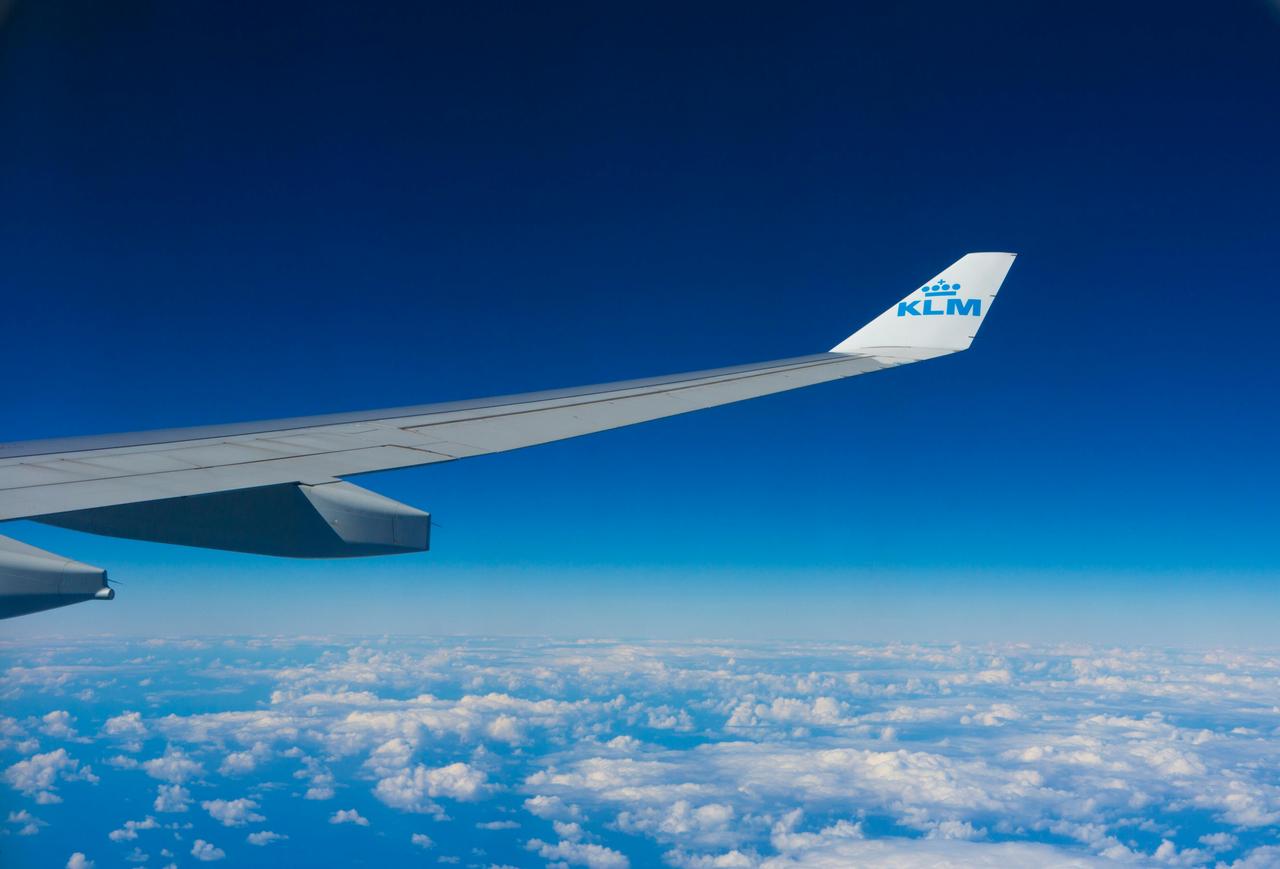

Airbus A330 winglet (Walter Sietinga, Pexels)

Types of Winglets

Winglet designs vary according to the engineering priorities and performance goals of manufacturers. There is no single definitive winglet shape; designs are tailored to the aircraft type, mission profile, and flight conditions. Winglets can be integrated during new aircraft production or retrofitted onto older models. Winglet configurations differ based on the aerodynamic needs of the aircraft. The main types of winglets are as follows:

Blended Winglet: A widely used design that connects smoothly to the wing, offering high aerodynamic efficiency. This design minimizes flow separation and reduces induced drag by approximately 4–5 percent. It is commonly used on Gulfstream and certain Boeing models.

Split Scimitar Winglet: An advanced version of the blended winglet, featuring a second downward-facing blade in addition to the traditional upward-extending plate. This dual-directional structure balances vortex flow and further reduces drag by an additional 1–2 percent. It is preferred on long-range commercial aircraft such as the Boeing 737 MAX family.

Wingtip Fence: A structure consisting of two vertical planes—one upward and one downward—attached perpendicularly to the wingtip. This system does not require complex curved geometry and reduces induced drag by approximately 1.5–2 percent by splitting vortex energy. It is implemented as a cost-effective and practical solution on the Airbus A320 family, which is primarily used for short-haul flights.

Sharklet: An aerodynamic wingtip device developed by Airbus for the A320neo family, resembling a shark’s fin. Operating on the blended winglet principle, it leverages advanced materials and design optimization to reduce carbon dioxide emissions by approximately 700 tons per aircraft annually. It also decreases fuel consumption by 3–4 percent. Sharklets are used both in new aircraft production and retrofit programs.

Raked Wingtip: A raked wingtip is a type of wingtip characterized by an extended and more sharply swept-back design. This configuration improves the lift-to-drag ratio by 15–20 percent and reduces induced drag by 20–25 percent. It is particularly important for long-range wide-body aircraft such as the Boeing 787 and 777X, where high performance and takeoff-weight balance are critical.

Spiroid Winglet: A spiroid winglet is a spiral structure that forms a closed loop at the wingtip, directing airflow along a single continuous surface and concentrating vortices at the center. This feature reduces the stall angle at low speeds and increases lift. It has been experimentally applied in military transport aircraft and business jets requiring high maneuverability.

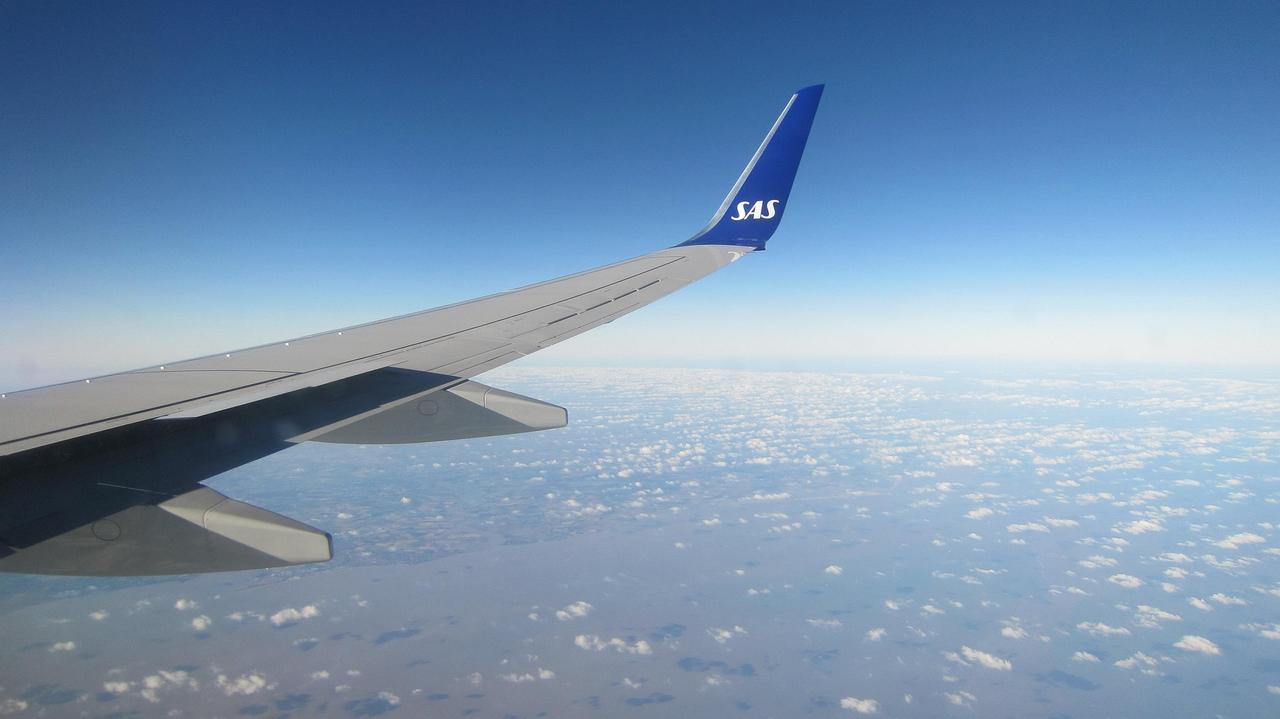

B737 winglet (Nur Andi Ravsanjani Gusma, Pexels)

Advantages and Disadvantages

Winglets are a significant engineering solution in modern aviation that enhance aerodynamic efficiency, reduce environmental impact, and improve operational performance. By limiting vortices formed at the wingtips, they reduce drag, resulting in fuel savings of 3 to 5 percent and increased range. Takeoff and climb performance improve, while lower stall speeds and more stable flight characteristics in turbulent conditions are achieved. Additionally, engine lifespan is extended and carbon emissions are reduced, playing a key role in sustainability strategies aligned with IATA’s 2050 Net Zero goals.

However, certain limiting factors exist. The design and structural integration of winglets can increase aircraft weight and may involve high production, installation, and maintenance costs. Their application on older aircraft models is often economically inefficient due to compatibility challenges. Furthermore, their increased wingspan can pose a risk of physical contact in confined parking areas. For these reasons, winglets are regarded as a balancing element requiring careful engineering and fleet planning between technical benefits and costs.

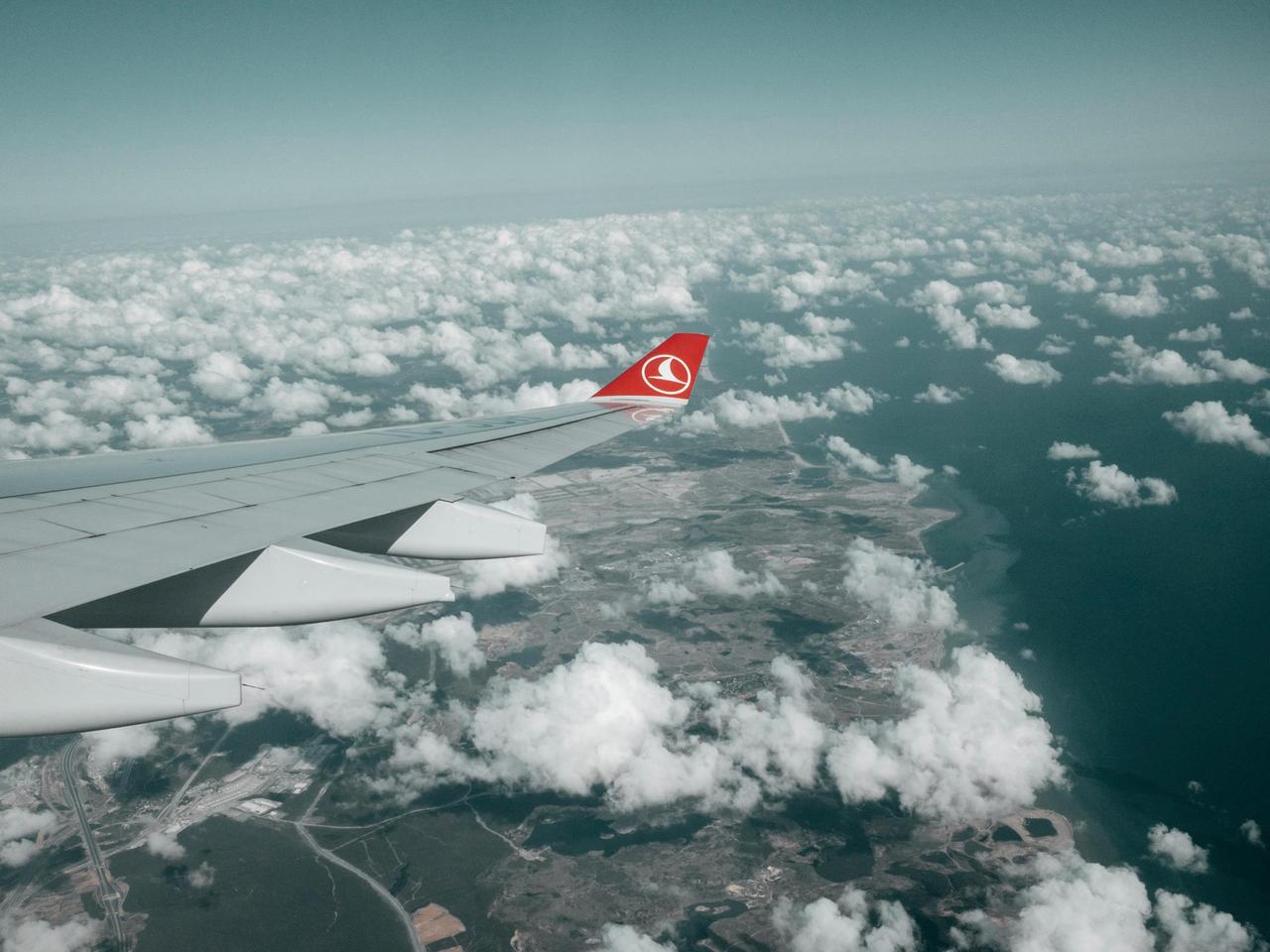

A330 Winglet (Carl Alfons, Pexels)

Current Importance and Future Perspective

Winglet technology holds a central role in modern aviation, both for environmental sustainability and operational efficiency. Amid rising international air traffic and efforts to combat climate change, winglets rank among the leading structural improvements aimed at reducing aircraft fuel consumption and carbon emissions. These wingtip designs can reduce fuel use by 3 to 5 percent, translating directly into lower greenhouse gas emissions and economic gains.

Today, most new-generation aircraft are manufactured with winglet-like tip structures, while existing fleets are being retrofitted to benefit from this technology. This transition is considered a critical step toward the aviation industry’s goal of achieving net-zero carbon emissions by 2050. The role of winglets extends beyond improving fuel efficiency; they also deliver indirect benefits such as noise reduction, extended engine life, and reduced maintenance frequency.

Driven by technological advances, future winglet designs are expected to move beyond passive aerodynamic elements and integrate with active control systems. Research is ongoing into adaptive winglet structures capable of changing shape during different flight phases to achieve optimal performance across varying altitudes and speeds. Additionally, advanced composite material technologies will enable the production of lighter, more flexible, and durable structures, further enhancing fuel efficiency.
