Antonov An-124 Ruslan

Antonov An-124 Ruslan (NATO reporting name: "Condor") is a four-engine, high-wing heavy transport aircraft developed by the Antonov Design Bureau during the Soviet era to meet strategic military and civilian logistical needs. The aircraft made its first flight on 24 December 1982 and upon entering operational service became the largest serially produced aircraft in the world. Its fuselage design has been optimized using advanced aerodynamic principles to enable the transport of exceptionally heavy and non-standard-sized cargo over intercontinental distances.

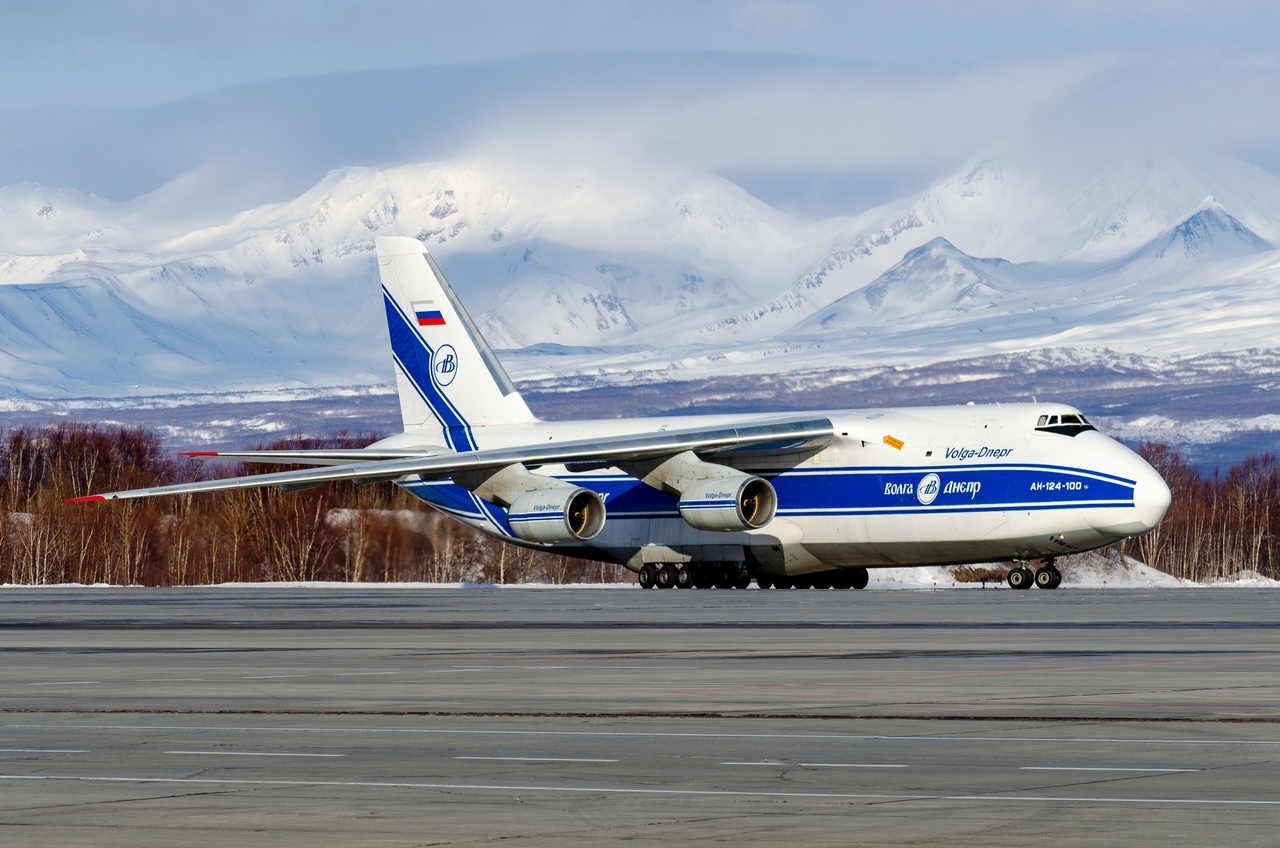

An-124 (joolsgriff)

Design and Development Process

Antonov An-124's design process began in the early 1970s in response to the Soviet Union's need to enhance its strategic air transport capacity and counter the capabilities of the United States' Lockheed C-5 Galaxy. Under the leadership of Viktor Tolmachev, the Antonov Design Bureau (OKB-153) planned the aircraft not only for military transport but also to fulfill civilian logistical requirements such as the movement of massive industrial components. During the design phase, the project, known by the code name "Product 400" (Izdeliye 400), integrated the largest single-piece wing structure ever used in an aircraft at the time with advanced supercritical wing profile technology.^【1】

One of the greatest engineering challenges during development was maintaining operational flexibility despite the aircraft's massive size. To address this, engineers developed a hydraulic system allowing the nose landing gear to "kneel," reducing the ramp angle and enabling heavy vehicles to drive themselves into the cargo compartment. Additionally, the flight crew cabin located on the upper fuselage was completely separated from the massive lower cargo area, isolating pressurization and loading operations from flight safety systems.

Production was distributed between facilities in Kiev (Ukraine) and Ulyanovsk (Russia), spreading the project across a broad industrial network. As part of the development process, the Lotarev (now Ivchenko-Progress) D-18T turbofan engines were integrated, providing the required thrust while setting a record for the highest bypass ratio of any engine in the Soviet aviation industry at the time. Following the successful first flight of the prototype in 1982, the aircraft was publicly unveiled at the 1985 Paris Air Show after extensive testing and went on to set numerous world records in aviation history.^【2】

Antonov An-12 Ruslan Technical Drawing (Generated by Artificial Intelligence)

Technical Specifications and Performance

The Antonov An-124 Ruslan is a massive aircraft with a length of 69.1 meters and a wingspan of 73.3 meters. Its four Ivchenko-Progress D-18T series turbofan engines each produce approximately 229.5 kN (kilonewtons) of thrust at sea level. This powerplant enables the aircraft to achieve a maximum takeoff weight of 405,000 kg (405 tonnes), while its cargo compartment offers over 1,000 cubic meters of volume with dimensions of 36.5 meters in length, 6.4 meters in width, and 4.4 meters in height.^【3】 Performance data shows that the An-124 achieves a cruise speed of 800–850 km/h and has a service ceiling of approximately 12,000 meters (39,370 feet).

The aircraft's range varies inversely with payload: with a maximum load of 150 tonnes, its range is approximately 3,700 kilometers, but with a 40-tonne load, this extends to 11,500 kilometers. This flexibility allows the aircraft to operate efficiently in both short-haul heavy industrial transport and intercontinental strategic airlift missions.^【4】

The aircraft's takeoff and landing performance is optimized through a 24-wheel, low-pressure tire landing gear system with adjustable height. This system enables the aircraft to land safely not only on major airfields but also on secondary runways with compacted earth or low-quality concrete. Additionally, the aircraft is equipped with advanced fly-by-wire control systems and autopilot capabilities, allowing it to perform high-precision approach and landing procedures even under adverse weather conditions.

Operational History

The Antonov An-124 Ruslan entered service with the Soviet Air Forces in the mid-1980s for strategic military transport, but it gained global recognition primarily through civilian operations. After the end of the Cold War, the aircraft's immense payload capacity was opened to commercial markets and became the standard for transporting cargo too large or heavy for any other aircraft, particularly in the heavy industry, energy, and aviation sectors. In 1987, an An-124 set a world record by taking off with over 171 tonnes of cargo, demonstrating the full extent of its structural capabilities.

Antonov An-124 Ruslan Cargo Compartment (José Luis Celada)

Throughout its operational life, the aircraft has played a critical role in international humanitarian missions and military logistics support. Under United Nations and NATO operations, it was frequently chosen to rapidly deliver emergency equipment such as construction machinery, generators, and field hospitals to disaster zones. Particularly under the "SALIS" (Strategic Airlift Interim Solution) program, many European countries lacking sufficient heavy transport fleets relied on the An-124's capacity. During this period, the aircraft demonstrated its logistical flexibility by transporting a wide variety of extreme loads, from locomotives to 100-ton electrical transformers and even fuselages of other aircraft.^【5】

Today, the An-124 fleet continues to operate globally, primarily operated by specialized carriers such as Ukraine-based Antonov Airlines and Russia-based Volga-Dnepr. Through modernization programs, these aircraft have had their service lives extended and their avionics systems upgraded, continuing to serve as "air bridges" in the global supply chain. Although production has ceased, the strategic importance of existing airframes, coupled with the difficulty of replacing them, ensures the aircraft retains its significant role in the aviation industry.

Variants

Throughout its operational life, various versions of the Antonov An-124 have been developed to adapt to evolving aviation standards and diverse user requirements. The base model, An-124, was originally designed entirely for military strategic transport and equipped according to Soviet Air Force operational needs. The civilian-certified variant, An-124-100, introduced in 1992, established global standards for commercial heavy cargo transport. This variant removed certain military defense systems and specialized communication equipment, replacing them with avionics upgrades necessary for civil airspace compliance.

Antonov An-124-100M (Miguel Angel Prieto Ciudad)

One of the most significant performance enhancements came with the An-124-100M variant, which featured an advanced avionics suite including Western-standard navigation systems and reduced the flight crew from six to four. Additionally, the An-124-100-150 sub-variant increased payload capacity from 120 to 150 tonnes and raised the maximum takeoff weight through extended engine life and structural reinforcements, maximizing operational efficiency. This development allowed the aircraft to carry heavier loads over intercontinental routes with fewer refueling stops.^【6】 The An-124-200 design, planned to meet modern requirements, was based on a fully digital cockpit architecture and more powerful Progress D-18T Series 3 engines, though production was hindered by political and economic challenges.

Developed by the Russian Federation to modernize its military logistics capabilities, the An-124-100V variant was optimized to comply with new noise and emissions standards set by ICAO (International Civil Aviation Organization). These variants demonstrate that the An-124 is not merely a product of one era but a flexible engineering platform capable of meeting the logistical demands of the 21st century.

Industry Legacy

The Antonov An-124 Ruslan has become more than just a transport aircraft; it has established itself as an industrial standard defining "project cargo" logistics. Before its development, the intercontinental transport of massive industrial equipment or military vehicles relied on weeks of sea and land transit. The An-124 reduced this to hours, creating a radical acceleration in the global supply chain. This operational success directly provided the technological and structural foundation for the development of the world's largest aircraft, the Antonov An-225 Mriya.

In terms of aviation engineering, the An-124 marked a turning point through its extensive use of large-scale aluminum castings and composite materials. Modernization programs aimed at extending the aircraft's service life continue to guide the industry on how to integrate modern digital avionics and next-generation navigation systems into legacy large airframes. Furthermore, original loading solutions such as the An-124's "kneeling" system are regarded as fundamental reference points influencing the design parameters of modern military transport aircraft. The most tangible evidence of the aircraft's industry legacy is its continued dominance in the heavy cargo market, despite decades having passed since production ended.

Manufacturers of critical components such as aviation engines, satellite systems, and oil exploration equipment have standardized their logistics planning directly around the dimensions of the An-124's cargo compartment.
