ASELSAN TOYGUN 100

TOYGUN 100 is an electro-optical (EO) sensor and targeting system developed by ASELSAN. It is designed for integration into both manned and unmanned combat aircraft.

Key Features and Technology

TOYGUN has been optimized for use on platforms such as the National Combat Aircraft (MMU), Kızılelma Unmanned Combat Aircraft, Akıncı, and Aksungur. The system’s primary missions include reconnaissance and surveillance, as well as target designation and precise laser marking.

The system enables day-and-night imaging under adverse atmospheric conditions through a high-resolution thermal camera operating in the mid-wave infrared (MWIR) band. Its two-axis mechanical and two-axis optical stabilization capabilities ensure stable imagery even when mounted on highly maneuverable aircraft. Advanced image processing algorithms are employed for the detection, identification, and tracking of both moving and stationary targets. Operations such as edge and corner smoothing, sharpening, histogram equalization, black-and-white balancing, and reduction of atmospheric distortions enhance the sensor’s discriminatory performance.

The system also integrates single and multiple target tracking with automatic target recognition capabilities, thereby reducing operator workload in combat environments. TOYGUN 100 features full compatibility with laser-guided munitions through its laser designation capability. The laser designator operates at a wavelength of 1064 nm and complies with NATO STANAG 3733 standards; the laser rangefinder can accurately determine target distances up to 35 km.

TOYGUN 100 can also detect laser designations from external platforms and perform laser spot tracking. Thanks to its internal boresight alignment capability, the thermal imaging and laser units are automatically aligned without requiring external equipment. The line-of-sight control system directs and stabilizes the sensor according to given coordinates or velocity/position commands, enhancing the precision of both reconnaissance and targeting missions. Together, these capabilities make TOYGUN 100 a low-observable, high-precision, and mission-versatile electro-optical solution tailored to the needs of modern combat aircraft.

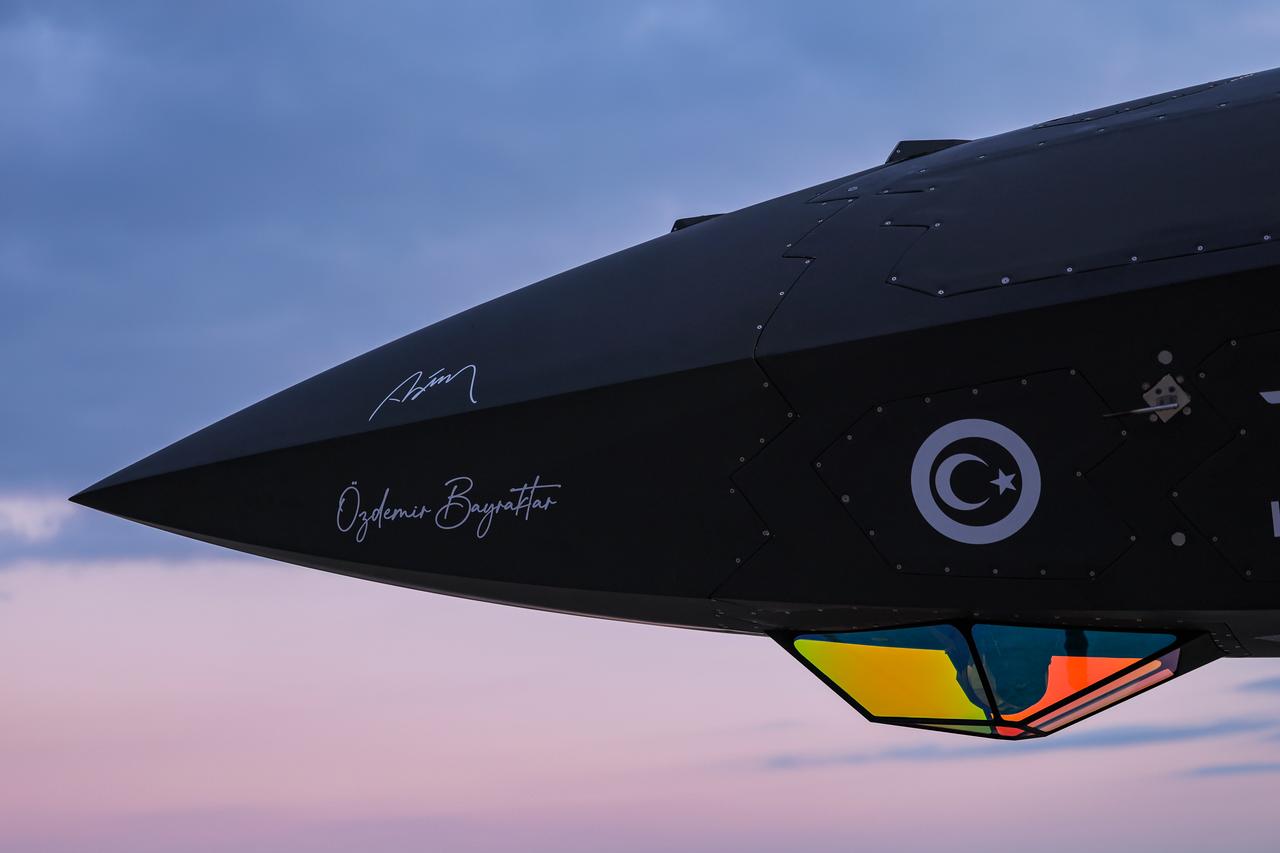

TOYGUN integrated into Bayraktar Kızılelma (Baykar)

Technical Specifications

• Sensor resolution: 1280×1024 MWIR thermal camera
• Laser designator: 1064 nm, STANAG 3733 compliant
• Laser rangefinder range: up to 35 km
• Stabilization: 2-axis mechanical + 2-axis optical
• Power interface: 270 V DC; power consumption: 1000 W
• Dimensions (sensor unit): 710 mm (height) × 550 mm (width) × 815 mm (depth)
• Faceted window module: 285.7 mm × 618.4 mm × 800.3 mm
• Weight: Sensor unit 120 kg (maximum), faceted window module 22 kg
• Operating temperature: –40 °C to +70 °C
