Laser-Guided Missiles

Laser guidance technology is a high-precision targeting system that plays a critical role in detecting and eliminating targets in modern combat zones. Thanks to this system, missiles can effectively strike tanks, armored vehicles, structures, and even mobile black/air targets. The laser guidance system operates by marking the target with a laser and detecting the reflected laser energy through a sensor on the munition. First developed in the 1960s, this technology has evolved through various defense industry applications into a critical solution today, both in terms of active cost and operational effectiveness.

Diagram of laser-guided missile operation principle. (Generated by artificial intelligence.)

Foundations and Methods of Laser Guidance

Laser guidance technology is a system that enables highly accurate targeting and typically operates on a semi-active principle. The fundamental concept relies on directing a laser beam at the target and detecting the reflected laser energy using a sensor on the munition. The system identifies the target's position by detecting the return signal from the laser beam and adjusts the missile's trajectory accordingly.

Laser Guidance Types

• Beam Riding: The laser beam is directed directly at the target and the missile follows the beam to reach it. This method is often preferred in simpler systems but may suffer from reduced accuracy over long ranges.
• Semi-Active Laser Homing (SALH): An external laser designator "paints" the target. The missile detects the laser energy reflected from the target and homes in on it. This is the most common laser guidance method today.
• Lidar-Based Guidance: Used in measurement-based systems, it calculates distance information to enable precise strikes.

Target Painting (Laser Painting)

The energy reflected from the laser directed at the target typically disperses in all directions. The intensity of this dispersed energy is detected by the missile's sensor, triggering a correction signal to guide the missile back toward the source of the laser. This process is performed through increasingly frequent measurements as the missile approaches the target (sampled guidance).

Operational Conditions

• Line-of-sight must be maintained. The target must be physically visible between the laser designator and the missile.
• Weather conditions must be clear. Dense smoke, fog, or clouds can scatter the laser beam and reduce system effectiveness.
• A reflective surface may be required. If the target surface is coated with specialized absorptive paints, the laser energy may not reflect sufficiently.

Platforms and Tactical Applications

• Ground-Based Laser Designators: Effective in urban warfare for identifying vertical targets such as windows, doors, and walls.
• UAVs and Air Platforms: Advantageous for identifying mobile targets such as vehicles or boats. They offer a wider field of view but may be limited when engaging vertical surfaces like windows.

Through the combination of these methods, modern laser guidance systems can be effectively employed even under complex geographical and structural conditions.

Guidance Systems: Active, Semi-Active, and Passive

Guidance systems are the core technologies that determine how a missile directs itself toward a target. These systems are classified into three main categories based on how target data is acquired and processed by the missile: active, semi-active, and passive guidance systems.

Active Guidance Systems

In active guidance systems, the missile carries all necessary transmitters and receivers onboard to detect and track the target. For example, an active radar-guided missile emits radar signals and determines the target's location by detecting the reflections from the target.

Advantages:

• The missile can operate independently, locating the target on its own.
• It has "fire-and-forget" capability.

Disadvantages:

• The system is complex and expensive.
• It emits signals, making it vulnerable to detection by the enemy.

Example: AIM-120 AMRAAM (active radar-guided air-to-air missile)

Semi-Active Guidance Systems

Semi-active guidance systems use an external source to illuminate the target; the missile then homes in based on the reflected signals. In this system, the missile acts only as a sensor; it does not emit any signal. SAL (Semi-Active Laser) falls into this category.

Advantages:

• Lower cost.
• Greater precision through operator control over target selection.

Disadvantages:

• The target must remain illuminated throughout the missile's flight.
• Performance can be affected by weather conditions.

Example: AGM-114 Hellfire (semi-active laser-guided)

Passive Guidance Systems

In passive systems, the missile homes in on energy emitted by the target, such as heat, sound, or electromagnetic radiation. The missile emits no signal and functions solely as a sensor.

Advantages:

• Difficult for the enemy to detect.
• Simple and silent in operation.

Disadvantages:

• The target must emit energy (e.g., jet engine heat, radar emissions).
• Can be affected by environmental interference.

Example: AIM-9 Sidewinder (infrared-guided)

Each of these three guidance systems offers distinct advantages depending on operational requirements and environment conditions. Laser guidance systems, particularly through their semi-active configuration, have become a critical place in modern battle warfare by providing both precision and operational flexibility.

Components and Operating Principle of SAL Technology

Semi-active laser (SAL) guidance systems rely on an external laser source to designate the target and a missile-mounted detector to sense the reflected laser light. These systems provide extremely precise targeting and are commonly used in air-to-air, air-to-ground, and ground-to-air missiles. The technical architecture of a SAL system consists of the following key components:

Optical System

Optical components focus the laser beam and direct it toward the detector. Typically, lenses made of fused silica, quartz, or silicon are used. These optics are designed to efficiently channel incoming laser reflections onto the detector surface within the opinion field of view.

Dector (Sensor)

The detector is typically a four-quadrant photodetector. This sensor determines the angular position of the target by identifying the direction from which the reflected laser light arrives. The sensor is precisely calibrated to the laser's wave wavelength (typically around 1064 nm).

Analog-to-Digital (A/D) Converter

The analog signal signal from the detector is converted into a digital digital signal by the A/D converter. These digital data are then transmitted to the system's processor along with target direction information.

Processor

Microcontroller or digital signal processor (DSP) calculates the difference between the target's position and the missile's current location. This difference is defined as a "target error vector" (dx, dy), which is used to command the missile's control surfaces.

Flight Control Actuators

The missile's direction is adjusted according to commands from the processor. This is typically achieved through movable fins, tail surfaces, or canards. Movement is driven by electric, hydraulic, or gas-powered mechanisms.

Power Supply

The energy source powering all these components is typically a battery battery. In modern systems, power consumption is below 10W.

Interface

SAL systems are usually connected to the main missile system via digital data communication ports such as RS422. This link enables command exchange.

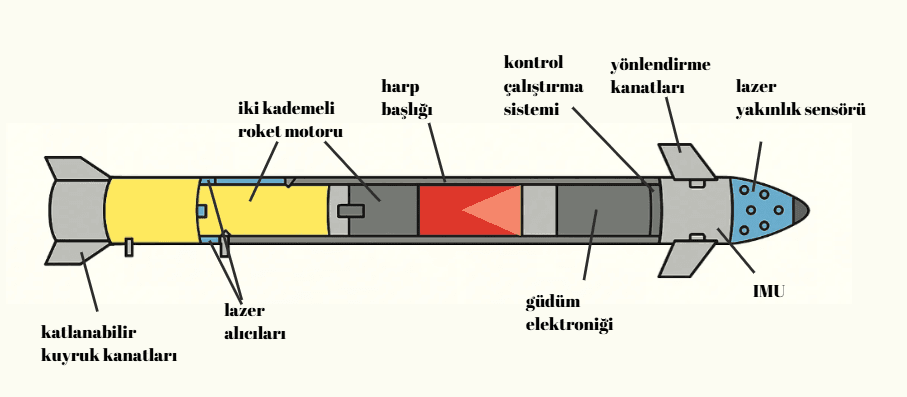

Diagram of a laser-guided missile. (Generated by artificial intelligence.)

Operating Principle

1. An external laser designates the target.
2. The reflected laser light reaches the detector via the optical system.
3. The detector determines the direction from which the light arrived.
4. The analog-to-digital conversion and processing begin.
5. Corrective maneuvers are executed to lock the missile onto the target.
6. In the terminal phase, strike precision can reach millimeter levels.

SAL technology is a field of intense research in both algorithm development and hardware miniaturization, forming the foundation for next-generation systems.

Development and History of Laser-Guided Missiles

The development of laser guidance technology is directly linked to the evolution of modern warfare systems. The emergence of these systems was shaped by the low hit rates of conventional munitions and advancements in electronic warfare targeting.

Early Period: World War II and After

During World War II, the accuracy of rockets was very low. Especially with air-launched unguided rockets, large numbers had to be fired to ensure a hit. This created a need for munitions capable of being guided to their targets. The first radar-based guidance systems were developed to meet this need but faced challenges such as complexity and signal jamming.

Discovery of the Laser and Military Applications

With the invention of the first laser by Theodore Maiman in 1960, the potential of this new energy source for military use became apparent. It was recognized that lasers could be used for target designation, distance measurement, and guidance applications.

Vietnam War Experience

The United States tested the first laser-guided missile prototypes in the war theater during the Vietnam War. These systems began to be called "smart weapons" and achieved pinpoint accuracy. However, limited range, weather-dependent performance, and system complexity prevented widespread use.

1970s: Introduction of SAL Systems

In the 1970s, semi-active laser-guided systems such as the AGM-65 Maverick, M712 Copperhead, and AGM-114 Hellfire entered service. These systems featured SAL detectors operating at a 1.06-micron wavelength. During this period, both air-to-ground and ground-to-air platforms began integrating SAL technology.

1991 Operation Desert Storm

The Gulf War demonstrated the battlefield impact of laser-guided weapons. The USA Air Force's ability to achieve hit rates approaching 90% established the future operational role of SAL systems.

2000s and Beyond

New-generation SAL seekers became smaller, more precise, and less expensive. Modern SAL systems developed by NSWC Dahlgren can operate without gimbals, using advanced optics and software algorithms. This has facilitated integration especially with unmanned systems.

Integrated Systems and Next-Generation

Current systems combine laser guidance with GPS and INS to provide precise strike capability under all weather conditions. This hybrid approach enhances target selection flexibility and overcomes line-of-sight limitations.

The evolution of SAL technology has not only improved technical capabilities but also advanced concepts such as battlefield flexibility, efficiency, and target verification.

Operational Advantages and Limitations

Laser-guided missiles offer numerous operational advantages but are also subject to specific technical and environmental constraints. The effectiveness of these systems varies depending on the application area, environment conditions, and target characteristics.

Advantages

• High Precision: SAL systems can strike targets with sub-meter accuracy. This is critical for minimizing collateral damage in densely populated areas.
• Operational Flexibility: Targets can often be designated at the last moment, allowing SAL missiles to be directed accordingly. This provides a significant advantage in "target of opportunity" scenarios.
• Effectiveness Against Moving Targets: Thanks to laser designation, moving targets such as vehicles or boats can be tracked and engaged in real time. The unique field of view provided by UAVs and air platforms enables detection of targets hidden in complex terrain.
• Lower-Cost Systems: Compared to high-precision systems like GPS/INS, SAL seekers are more affordable. Commercial Off The Shelf (COTS)-based approaches have made SAL systems more accessible.
• Platform Interoperability: SAL systems can be launched from land, air, and sea platforms. Helicopters, UAVs, fixed-wing aircraft, ground-based launchers, and even artillery shells can be integrated with SAL technology.

Limitations

• Line-of-Sight Requirement: SAL systems require a direct line-of-sight between the target, designator, and missile. The designator must continuously illuminate the target without interruption.
• Weather-Dependent Performance: Conditions such as fog, smoke, or clouds that obstruct visibility can scatter the laser beam, making target lock difficult or impossible.
• Non-Reflective Surfaces: Some military systems are coated with specialized absorptive paints or coatings that absorb laser energy. This weakens the reflection and may prevent the missile from detecting the target.
• Terminal Angle Limitations: When fired from long distances, SAL missiles may strike targets at shallow angles. This can prevent sufficient penetration against underground structures such as bunkers. In such cases, "loft maneuver" techniques may be required.
• Dependence on Designator: The target must remain illuminated throughout the missile's flight. If the designator is neutralized or the signal is interrupted, the missile loses its ability to strike the target.

The operational benefits of laser-guided systems can be maximized through proper tactical planning and appropriate environmental use. These systems are a critical force multiplier in operations where precision is paramount.

Manufacturing Process and Material Components

The production of laser-guided missiles is a complex process requiring advanced materials science, precision electronics assembly, and pyrotechnic expertise. This section details the production process, key materials used, and system integration.

Key Material Components

• Airframe Material: High-strength steel or aluminum alloys are used, selected for resistance to pressure and heat.
• Optical and Detector Components: Lenses made of fused silica, silicon, or glass; semiconductors such as gallium arsenide.
• Electronic Boards: Printed circuit boards (PCBs), microcontrollers, sensor interfaces, and signal processing integrated circuits.
• Propulsion System: Nitrogen-based solid propellants, either double-base or composite types.
• Warhead: Warheads containing explosives such as H-6, HBX, or PBX; housed in steel or aluminum casings.

Manufacturing Stages

Airframe Casting and Mechanical Assembly

• The missile airframe is typically cast in two semi-cylindrical halves.
• Nozzles and mounting surfaces are machined using high-precision CNC machines to create pre-assembled components.
• Fins and stabilizers are attached via mechanical hinges or integrated sockets using welding or bolts.

Propellant Preparation and Casting

• Solid propellant is cast using centrifugal systems.
• This process ensures uniform distribution of the propellant for consistent combustion.
• Temperature and humidity conditions are strictly controlled.

Guidance System Assembly

• Optical detectors, filters, and thermal isolators are assembled.
• Integrated circuits are soldered onto PCBs, with special attention to EMI/EMC compatibility of signal lines.
• Optical systems are secured to withstand thermal shock and vibration.

Final Assembly: Warhead and Sensor Integration

• The warhead is securely integrated into the missile airframe.
• Sensor circuits and firing units in contact with explosives are carefully installed.
• The laser detector is mounted in the missile nose section.

Final Testing and Qualification

• After assembly, each missile undergoes procedures such as optical alignment, electronic testing, functional testing, and vibration testing.
• Some prototypes are validated through live-fire tests in the field.
• Compliance tests are conducted against international standards such as NATO STANAG 3733.

Waste and Byproducts

• Toxic waste generated during manufacturing (propellants, explosives, coating chemicals) is collected in isolated areas.
• Liquid waste is stored in sealed tanks and transported to licensed disposal facilities.
• Personnel are equipped with respirators, protective clothing, and decontamination tools to mitigate exposure risks.

In the production of SAL-equipped missiles, precision, a multidisciplinary approach, and continuous quality control are essential. Recent advancements have enabled the production of lower-cost and more integrated systems.

Application Areas and Tactical Uses

Laser-guided missiles are designed for use in various combat scenarios requiring precision and flexibility. The advantages offered by SAL systems are particularly evident in their ability to engage targets effectively in complex geographical and structural environments.

Urban Warfare

SAL systems provide significant advantages in striking buildings, window openings, doors, and wall vertical targets. Precise strikes on structures identified by ground forces or UAVs help reduce civilian casualties.

Close Air Support (CAS)

SAL missiles launched from air platforms—particularly fixed-wing aircraft and helicopters—enable precise strikes on targets located at close distances from friendly ground forces. This enables simultaneous force support and target destruction.

Tank and Armored Vehicle Defense

Laser-guided missiles demonstrate high effectiveness against armored targets. In particular, top-tank top-attack scenarios allow targeting the most vulnerable areas of tanks.

Use Against Maritime Targets

Small and medium-sized vessels, boats, or landing craft—mobile sea targets—can be effectively detected and destroyed using SAL systems. The elevated viewing angle provided by UAVs and helicopters facilitates target tracking in maritime environments.

Border and Special Operations

In covert border operations requiring secrecy and precision, SAL technology enables the neutralization of targets within specific environments. For example, targeted attacks on terrorist hideouts can be executed using SAL systems.

Air-to-Air Applications

Although laser-guided systems are primarily used in air-to-ground or ground-to-ground engagements, they also have applications in certain air-to-air scenarios. SAL-based systems may be preferred for precise strikes against targets such as enemy UAVs or low-altitude helicopters.

Multi-Platform Usage Scenarios

SAL systems can be used cooperatively across land, air, and sea platforms. For example, a target designated by ground forces can be engaged by a UAV, or vice versa—a target designated by an air platform can be neutralized by ground artillery. This integration provides a significant advantage by enhancing battlefield flexibility.

These tactical applications demonstrate how laser-guided systems create operational impact. The ability to integrate target identification, designation, and destruction into a single process is a fundamental reason for the widespread adoption of SAL technology.

Future Vision: Autonomous Laser-Guided Systems

The future of laser-guided systems is evolving toward much more autonomous, precise, and effective munitions, driven by advances in artificial intelligence, sensor technology, and communication infrastructure. Within this context, the future of SAL technology is shaped by the following key areas:

Fire-and-Forget Capability

Current SAL systems require continuous laser illumination of the target. However, in autonomous systems, once the missile detects the target, it can continue tracking using internal algorithms. This reduces operator dependency and enhances tactical maneuverability.

Artificial Intelligence and Automatic Target Recognition

Through image processing technologies, the missile can recognize target characteristics such as shape, movement, and scale. This enables differentiation between similar targets and reduces the risk of wrong strikes. It also enables munitions to operate effectively with limited intelligence.

Hybrid Guidance Systems

Future SAL missiles will integrate GNSS, INS, electro-optical, and thermal sensors to form multi-layered guidance systems. These systems will gain the flexibility to strike targets even without direct line-of-sight, using pre-programmed data.

New Algorithms and FPA (Focal Plane Array) Seekers

Missiles equipped with focal plane array sensors can achieve wider fields of view and more fast target tracking. New algorithms such as LSPL (last significant pulse logic) and SJI (spot jump inhibit) are being implemented in these systems.

Multi-Use and Modular Architectures

Future SAL-based systems will be designed in modular form, enabling the same sensor architecture to perform target designation, autonomous navigation, and recognition functions. This provides logistics ease and cost efficiency.

Electronic Warfare Resistant Systems

Immunity to advanced countermeasures is being developed by incorporating adaptive filtering and signal selectivity into algorithms. This will enable SAL systems to maintain target lock even under heavy ECM (electronic countermeasures) conditions.

This vision anticipates that SAL systems will evolve beyond mere guidance to become intelligent systems capable of identification and active engagement in multi-target combat scenarios.
