Fiber Optic Splicing Device (Fusion Splicer)

A fiber optic splicer is a high-precision technological device used to join the ends of two optical fibers. This process, known as fusion splicing, involves controlled heating and melting of the fiber ends to fuse them together. Fiber optic splicers play a critical role in fields requiring high bandwidth such as telecommunications internet infrastructure and data centers.

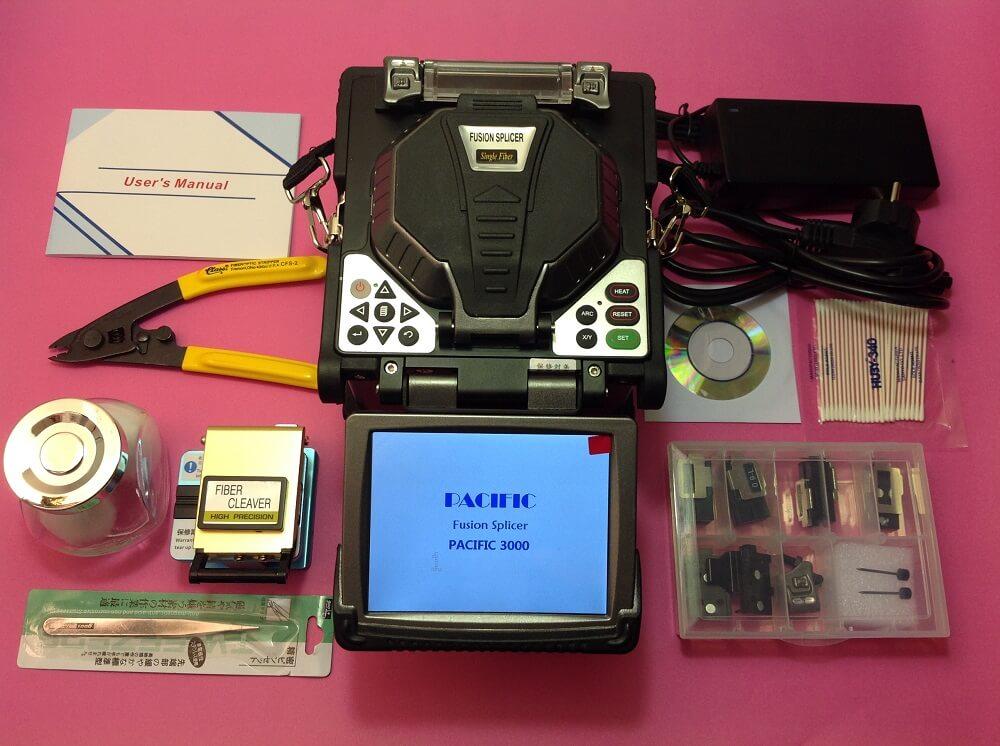

Visual of optical fiber connection (t-mm.net)

Primary Function and Operating Principle

The primary function of a fiber optic splicer is to align the ends of two fibers at a microscopic level to minimize optical loss. This process typically involves the following steps: stripping and cleaning the fiber ends cutting them to achieve a flat surface inserting them into the device automatic alignment and finally welding using an electric arc. The resulting joint is then protected with a protective sleeve to shield it from environmental factors.

Types

Fiber optic splicers are generally classified into three categories manual semi automatic and fully automatic. The most commonly preferred models today are the fully automatic ones. These devices can perform fiber alignment splicing and testing with minimal user intervention. The alignment methods used in automatic models fall into two main categories:

• Cladding alignment splicers rely on aligning the outer cladding layers and offer more economical solutions.
• Core alignment splicers use a microscope to precisely align the inner core of the fiber resulting in lower splice loss.

Applications

Fiber optic splicers are used in the installation and maintenance of fiber optic networks. They are widely employed in long-haul backbone lines FTTH Fiber to the Home projects data centers and underground or overhead fiber line repairs. Portable models are suitable for field technicians and maintain functionality even under harsh environmental conditions.

Considerations When Selecting a Splicer

Key factors to consider when selecting a splicer include the device’s alignment technology splicing time battery capacity display quality data storage and testing features. Additionally manufacturer support availability of spare parts and ease of use are important. Brands such as Sumitomo and Fujikura are among the trusted manufacturers frequently chosen in the industry.
