Kawasaki Ninja ZX-10R

Kawasaki Ninja ZX-10R is a model by Japanese motorcycle manufacturer Kawasaki.^{【1】 【2】} Known for its track-focused performance, this motorcycle is derived directly from Kawasaki’s racing experience.^【3】 Designed to push limits both on the race track and on the road, it features a high-performance inline-four engine, advanced aerodynamics, and state-of-the-art electronic systems.

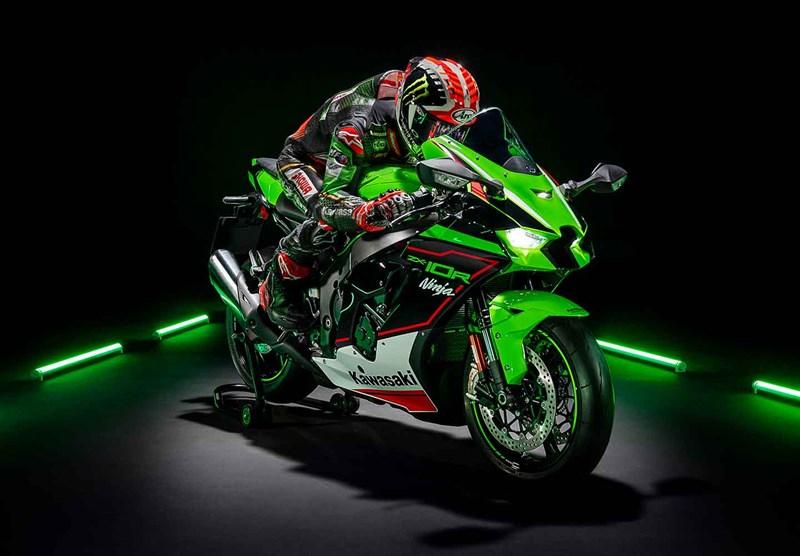

Kawasaki Ninja ZX-10R (Kawasaki)

Engine Specifications and Powertrain

The Kawasaki Ninja ZX-10R derives its power from a 998 cc liquid-cooled, inline-four engine optimized to deliver immense power at high RPMs. It incorporates technologies directly transferred from Kawasaki’s race motorcycles.

Main engine and powertrain features

• Engine Type: Liquid-cooled, four-stroke, DOHC, 16-valve, inline-four.
• Engine Displacement: 998 cc.
• Maximum Power: Approximately 203 PS (149.3 kW) @ 13,200 rpm (up to 213 PS with Ram Air).
• Maximum Torque: Approximately 114.9 Nm @ 11,400 rpm.
• Fuel System: Electronic fuel injection system (dual injectors).
• Transmission: 6-speed manual gearbox.

The engine is equipped with the Kawasaki Quick Shifter (KQS), enabling clutchless upshifts and downshifts. An Assist and Slipper Clutch system is also standard.

Design and Aerodynamics

The design of the Ninja ZX-10R prioritizes speed, aggression, and aerodynamic efficiency. Every detail is shaped to maximize stability and minimize drag at high speeds.

Key design elements include:

• Aggressive Front Fairing and Integrated Winglets: Especially on 2021 and later models, winglets are integrated into the upper fairing. These generate downforce at high speeds, increasing front wheel grip and improving balance.
• Full Fairing: A sporty bodywork developed in wind tunnels to minimize aerodynamic drag and optimize airflow.
• Compact LED Headlights: Sleek and modern LED headlights integrated into the aerodynamic package for a sharp appearance.
• Compact Rear Tail: A minimalist and elevated rear design inspired by race motorcycles.

Kawasaki Ninja ZX-10R (Kawasaki)

Chassis, Suspension and Braking Systems

The ZX-10R’s chassis is engineered for lightweight construction and superior road holding. Optimized using data from WSBK racing, the chassis enhances stability at high speeds and through corners. The suspension and braking systems are specifically designed for top-tier track performance.

Chassis, suspension and braking system details

• Chassis: Aluminum twin-spar frame.
• Front Suspension: Fully adjustable 43 mm Showa Balance Free Front Fork (BFF) USD forks. (Factory settings and dampers may vary by model and can be Ohlins branded.)
• Rear Suspension: Fully adjustable Showa Balance Free Rear Cushion (BFRC lite) monoshock system.
• Braking System: Dual front discs with Brembo Stylema monobloc radial calipers and a single rear disc. Kawasaki Intelligent Anti-Lock Brake System (KIBS) is standard.
• Wheels and Tires: Lightweight alloy wheels paired with high-performance track-focused tires such as the Pirelli Diablo Supercorsa SP.

Electronic Systems and Rider Aids

The Kawasaki Ninja ZX-10R is equipped with the latest generation of electronic systems, which work in integration to provide maximum control, safety, and customization for the rider.

Key electronic features

• Bosch 6-Axis IMU (Inertial Measurement Unit): The core sensor unit for all dynamic electronic systems.
• Kawasaki Traction Control (KTRC): Monitors rear wheel slip and is adjustable across multiple levels.
• Kawasaki Launch Control Mode (KLCM): Optimizes engine torque for maximum acceleration during starts.
• Kawasaki Engine Brake Control (KEBC): Adjusts the level of engine braking.
• Power Modes: Offers Full, Medium, and Low power settings.
• Integrated Riding Modes: Sport, Road, Rain, and Rider (customizable) modes adjust engine power and electronic intervention levels.
• Kawasaki Cornering Management Function (KCMF): Optimizes engine and brake output during cornering to maintain stability, supported by IMU data.
• Electronic Throttle Valves: Enable precise throttle response and seamless integration with electronic systems.
• TFT Color Display: Presents all riding information through a clear, comprehensive interface, with optional Bluetooth connectivity.

Kawasaki Ninja ZX-10R (Kawasaki)

Market Position and Competitive Landscape

The Kawasaki Ninja ZX-10R is recognized as one of the most competitive models in the liter-class superbike segment. With technology directly derived from WSBK racing and a “race-winning” reputation, it specifically appeals to performance enthusiasts.

Its main competitors include other flagship superbikes such as the Yamaha YZF-R1, Honda CBR1000RR-R Fireblade, Suzuki GSX-R1000R, Ducati Panigale V4, and BMW S 1000 RR.
