Full Authority Digital Engine Control (FADEC)

Complete Full Authority Digital Engine Control (FADEC) is an integrated electronic system that provides complete digital control of gas turbine engines in aircraft. FADEC is a software-based control system that digitally monitors and manages all work parameters of the engine, aiming for optimal performance without requiring pilot intervention. It times and regulates all processes necessary for engine operation, including fuel injection, compressor and turbine geometry, and ignition like. Its primary objective is to provide a superior engine control infrastructure compared to mechanical-hydraulic systems in terms of reliability, security, fuel efficiency, and maintenance ease.

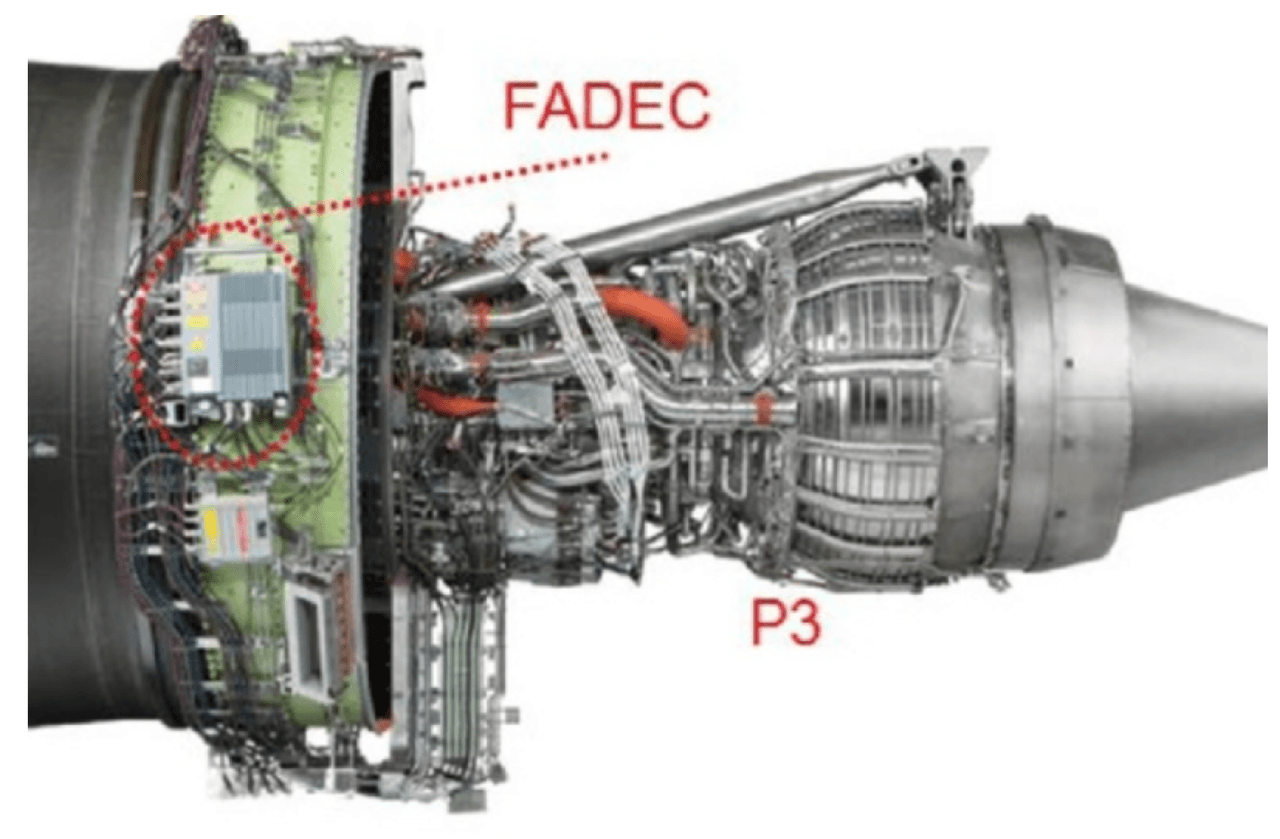

(Credit: Michael Usrey)

History and Development Process

Emergence of FADEC Systems

The emergence of Full Authority Digital Engine Control (FADEC) systems stemmed from the need to overcome the limitations of analog and hydro-mechanical control systems in aviation engine control. In the late 1970s, as demand grew for more precise and integrated control systems in engines, advances in microprocessor technology paved the way for electronically controlled engine management systems.

The first FADEC systems were introduced in military aviation applications in the early 1980s. During this period, electronic control evolved from being merely supplementary to fully assuming all engine control functions, transitioning from classical “supervisory” systems to full authority digital control systems.

These first-generation FADECs played a important role in enhancing flight safety and fuel efficiency by real-time monitoring of critical gas turbine engine parameters such as rotor speed, turbine temperature, and fuel flow. FADEC systems became widely adopted in aircraft such as the F/A-18 Hornet, Eurofighter Typhoon, and Boeing 777.

Development Stages and Next-Generation Architecture

Three key stages can be identified in the evolution of FADEC systems:

1. Partial Digital Supervisory Systems (late 1970s – early 1980s): Digital components were limited to interpreting pilot inputs and monitoring a few parameters.
2. Full Authority Digital Systems (1980s – 1990s): FADEC systems assumed complete digital control of the engine. Redundant architectures and software-based control laws were adopted.
3. Modular, Adaptive FADECs with Advanced Algorithms (2000s – present): Hierarchical software architectures, open system integration, advanced control techniques (MPC, ANFIS, NARX), and emissions-focused control strategies came to the forefront.

For example, in recent years, FADEC control systems in Rolls-Royce’s Trent series engines have incorporated model predictive control methods alongside traditional PID algorithms. Additionally, FADEC adoption has begun in the General Aviation category. Manufacturers such as Lycoming (iE2 FADEC) and Continental (PowerLink FADEC) are developing FADEC applications for piston engines.

Parallel Development with Software and Safety Requirements

Since the 1980s, the use of digital control systems in aviation has required not only engineering solutions but also regulatory oversight. FADEC software began to be developed in compliance with certification protocols such as RTCA DO-178 and DO-254. These standards mandate that FADEC software and hardware components be classified according to their criticality for flight safety. For instance, FADEC software in DAL-A category, which contains the highest-risk functions, undergoes rigorous testing and validation processes.

Moreover, the development of FADEC systems has driven the advancement of functional safety evaluation methods such as FMEA, FTA, and FHA. Particularly in single-engine aircraft, where FADEC failures directly impact flight safety, fault fault-tolerant architectures have become widespread.

Miniaturization and Integration into Lightweight Applications

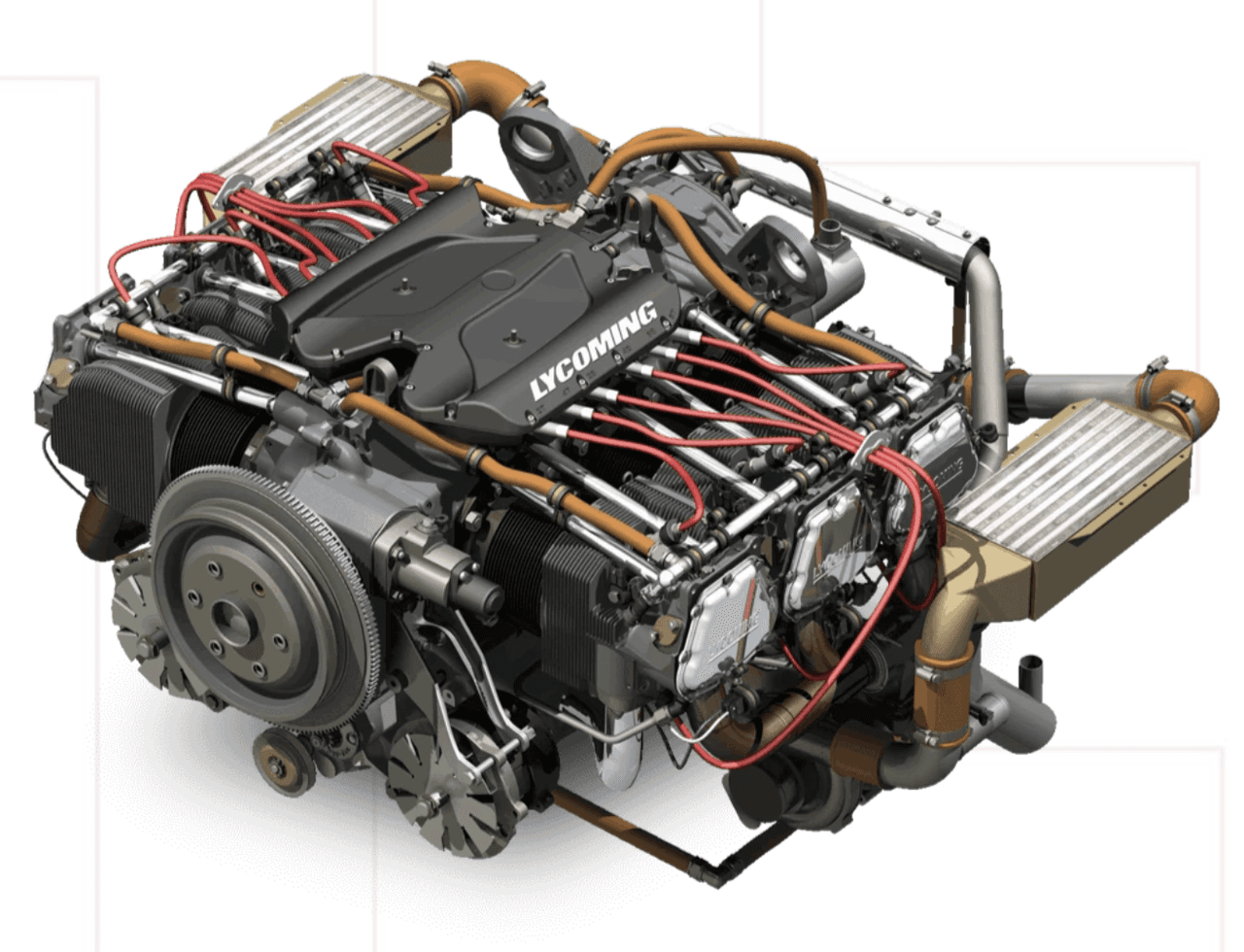

Next-generation FADEC systems are no longer limited to large passenger aircraft and war aircraft; they are also being deployed in smaller and lighter aircraft. Research has focused on developing modular FADEC systems for small turbojet engines in the 1500 N thrust class. Such systems are used in specialized applications such as gliders, unmanned aerial vehicles, powered gliders, and backup power systems.

Mini FADEC systems developed in this context are optimized for low weight, low power consumption, modular software-mechanical building, and PID-based control algorithms. Additionally, data collection and error diagnostic capabilities in these systems are also used for training and research purposes.

Current Trends and Future Outlook

The current development direction of FADEC systems is concentrated in four key areas:

• Emission Reduction: FADEC algorithms are being developed to reduce NOₓ, CO₂, and noise emissions through software-based methods in line with Flightpath 2050 targets.
• Artificial Intelligence-Based Control: FADEC’s adaptive behavior capability is being enhanced using learning systems such as ANFIS and NARX.
• Electrification and Propulsion Modernization: FADEC is evolving to integrate with hybrid-electric propulsion systems.
• Autonomous Flight and Data Connectivity: FADEC systems are undergoing deeper integration with central flight management systems and flight data links.

In conclusion, FADEC systems have become not merely an engine control system but the digital backbone of a comprehensive flight safety and efficiency infrastructure.

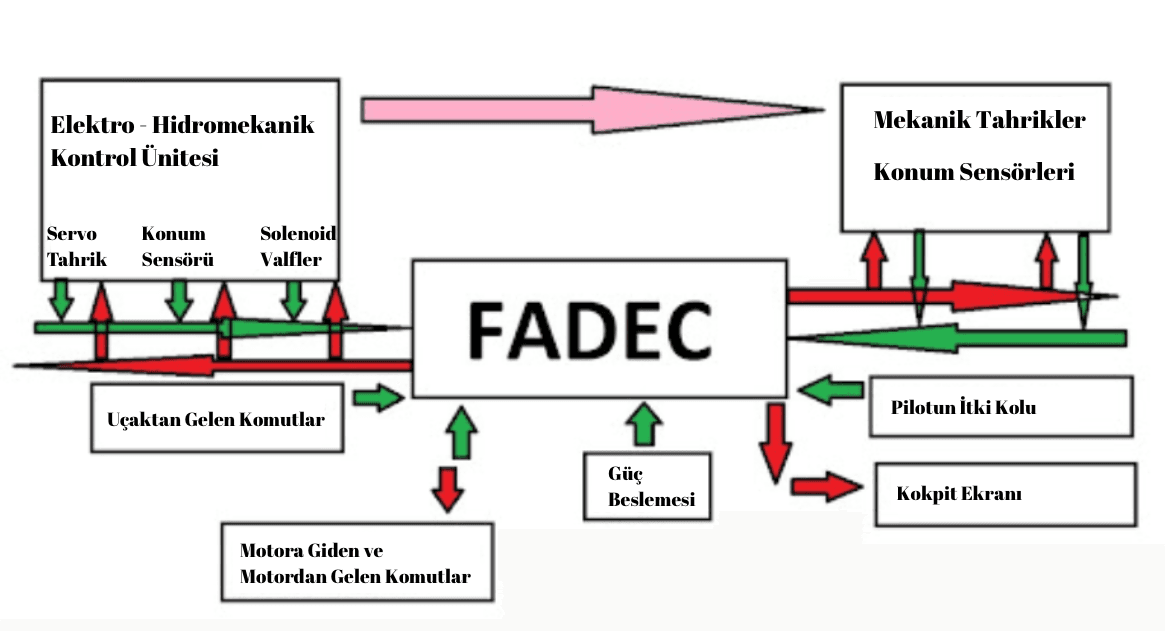

Core Components and Operating Principle

The FADEC system consists of four main components:

1. Electronic Control Unit (ECU): Processes data from sensors and sends commands to actuators.
2. Hydromechanical Metering Unit (HMU): Physically regulates fuel flow.
3. Electrical Interface Hardware (cables, connectors): Ensures data and power transmission between the ECU and engine components.
4. Engine and Airframe Sensors: Continuously monitor parameters such as temperature, pressure, speed, and others.

The FADEC system is a software-supported, closed-loop digital engine control system that manages all functions of an aircraft engine in real time. FADEC systems consist of multiple integrated subcomponents, each of which plays a vital role in both system functionality and flight safety.

Editor: Beyza Nur Türkü (Credit: Alireza Behbahani)

Main Components

FADEC systems generally consist of the following four main elements:

Electronic Control Unit (ECU)

The Electronic Control Unit is the brain core of FADEC. It processes data received from aircraft engine sensors and controls fuel injection, engine geometry (e.g., variable nozzles, fan or compressor blades), ignition timing, and protection limits. The ECU hardware infrastructure consists of:

• Microcontrollers / DSP processors: Real-time data processing and control command generation.
• Memory units: Units for storing software code (EPROM/Flash) and temporary data (RAM).
• Analog-to-digital (A/D) and digital-to-analog (D/A) converters: Required for digitizing Sensor data and transmitting output commands to analog actuators.
• Power management and protection circuits: Ensure continuous system power supply and protection against overcurrent/tension conditions.

The embedded software within the ECU ensures the engine operates at its optimal performance point depending on flight regime. Modern ECU architectures are dual-channel (redundant); one channel operates actively while the other remains in standby, or both channel operate simultaneously to cross-check control values.

Hydromechanical Metering Unit (HMU)

The HMU is the physical component that directly controls fuel flow according to signals from the electronic control unit. This unit consists of the following subcomponents:

• Electromechanical actuators: Components such as solenoid valves and step motors move physically in response to ECU commands.
• Position feedback sensors: Provide feedback on actuator position to the ECU.
• Modulatable fuel bypass valves: Allow precise adjustment of fuel flow according to engine operating conditions opportunity.

The purpose of the HMU is to adjust fuel flow to meet engine power demands without exceeding safe operating limits. In failure scenarios, the HMU switches to a fail-safe mode to prevent the engine from entering hazardous regimes.

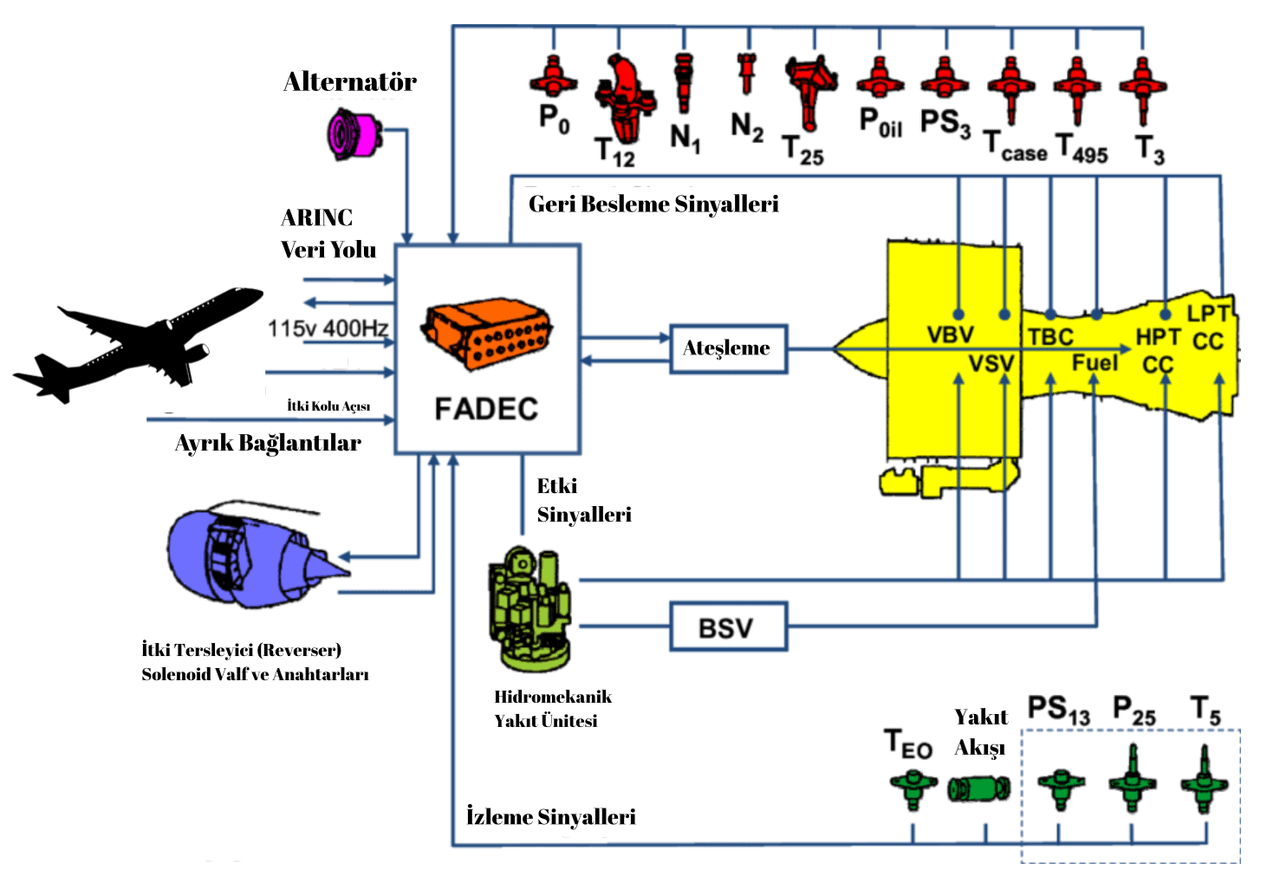

Sensors and Data Input Unit

The FADEC system operates using data from numerous sensors across the engine and airframe. This data forms the foundation of the system’s closed-loop control. Typical sensors include:

• Pressure sensors (P1, P2, P3*, P4*): Compressor and turbine inlet/outlet pressures.
• Temperature sensors (T1, T3): Compressor inlet and turbine outlet temperatures.
• Rotor speed sensors (N1, N2): Low and high-pressure rotor revolutions.
• Fuel pressure and flow sensors: Required to verify fuel system accuracy.
• Throttle position sensor (TLA): Measures pilot throttle input.

Analog signals from sensors are digitized via A/D converters and processed by the ECU. To protect against data loss, noise, and corruption, signal filtering, fault diagnosis, and multiple source control algorithms are applied.

Connection Elements and Electrical Interfaces

The electrical connections that ensure reliable data and power transmission between all FADEC components are:

• Shielded twisted pair (STP) cables: Minimize EMI effects.
• Connectors and terminals: Physically connect the aircraft engine and FADEC systems.
• Data protocols: Aviation-specific protocols such as RS422, ARINC 429, and MIL-STD-1553 are used for transmission.

FADEC systems operating in high electromagnetic environments undergo EMI testing to ensure the durability of these components.

Operating Principle

FADEC systems operate on the principle of full authority digital closed-loop control. The system’s operation can be summarized in the following steps:

1. Data Collection: Data such as temperature, pressure, speed, and throttle position from sensors are converted via A/D and transmitted to the ECU.
2. Data Processing and Decision Making: Software within the ECU analyzes engine models, environmental conditions, and pilot commands to generate appropriate control commands. This stage considers algorithms for engine protection limits (excessive temperature, pressure, speed), performance optimization (fuel consumption, emissions, thrust), fault diagnosis, and redundancy (redundant switching) criteria.
3. Command Generation: The ECU generates signals to direct actuators on the HMU.
4. Actuator Movement: Fuel valves, nozzle geometry, ignition systems, and similar components are physically movement via the HMU.
5. Feedback: New sensor data is returned to the ECU to complete the closed loop.

These steps are repeated in millisecond process intervals, enabling FADEC to respond instantly to engine behavior. Additionally, during flight, the FADEC system:

• Optimizes fuel consumption.
• Maintains maximum performance without exceeding safety limits.
• Automatically records diagnostic and maintenance data.

In modern FADEC systems, emergency situation modes and redundancy layers (mechanical backup or dual ECU architecture) ensure flight safety in the event of system failure.

Editor: Beyza Nur Türkü (Credit: Aircraft Nerds)

Development Methods and Software Architecture

The development of FADEC systems is subject to high standards that simultaneously meet criteria such as aviation airworthiness, reliability, environmental compatibility, and maintenance ease. The development process is not limited to hardware selection and integration; it requires a software architecture that ensures safe, deterministic, and optimized operation. Therefore, FADEC software is designed using advanced engineering techniques incorporating modular structure, multi-layered programming, task prioritization, and fault-tolerant control.

System Development Process and Requirements

The development of FADEC systems follows these steps:

1- Scenario and Requirement Definition

System requirements are defined to cover the entire lifecycle of the aircraft engine. Screenplay analyses (takeoff, flight, failure, maintenance, shutdown scenarios) identify critical control points such as when the FADEC must maintain power, when it must cut power, and required cooling durations.

2- Functional Definition

Each FADEC function (fuel metering, engine speed limiting, engine start, engine shutdown, flight data transfer) is systematically defined. Requirements for each function are linked to flight scenarios to ensure traceability.

3- Modular Design and Function Separation

In software design, each control function (fuel control, ignition, temperature monitoring) is configured as separate modules. This enables code reusability, testability, and ease of maintenance.

4- Redundancy and Fault Management Integration

The system is designed to operate redundantly (dual ECU, dual-channel data paths). Software is synchronized to activate the backup component when a fault is detected in the primary component.

5- Real-Time Operation and Timer-Based Control

FADEC software operates on real-time operating systems (RTOS). Timers enable task scheduling at millisecond scales to match engine dynamics.

Software Architecture

The software architecture of FADEC systems generally consists of four main layers:

1. Driver Layer

• Provides direct access to hardware resources.
• Processes analog data from sensors and prepares actuator signals.
• Manages A/D and D/A units and data communication protocols such as CAN and ARINC429.
• Performs hardware-level fault detection (e.g., signal loss, out-of-tolerance voltage).

2. Adaptation Layer

• Converts data from hardware into engineering units (e.g., Volts → °C, RPM).
• Applies system-specific scaling and offset corrections.
• This layer ensures device independence; for example, the same software can operate with different sensor sets.

3. Functional Layer

• Contains algorithms that control engine behavior.
• Algorithms for fuel metering, maximum temperature protection, engine start, and engine shutdown are coded here.
• Control algorithms such as PID, LQR, and MPC operate at this level.
• Secondary functions such as fault diagnosis, data logging, and weight monitoring are also executed here.

4. Interaction / Interface Layer

• Manages data exchange between FADEC and aircraft systems (cockpit indicators, flight computer, maintenance station).
• Provides interfaces with pilot displays, maintenance terminals, and flight data recorders.
• Also includes in-flight parameter monitoring and data logging functions.

This layered structure ensures both functional isolation and ease of maintenance. Additionally, this structure provides advantages in terms of traceability and safety during the airworthiness certification process.

Control Algorithms

The control algorithms used in FADEC systems are designed at different levels to ensure safe and efficient operation under flight conditions. These algorithms are generally classified into the following groups:

1. Classical Control Algorithms (PI, PID)

• Used for simple and stable systems. They provide sufficient performance especially in fixed regime conditions.
• Used as still common in small turbojet engines (e.g., the TKT-1 training engine).

2. Optimal and Advanced Control (LQR, LQG/LTR)

• Optimizes system performance and energy balance.
• Suitable for noisy environments. These methods are primarily used in large aircraft engines.

3. Model Predictive Control (MPC)

• Generates optimal decisions by predicting the system’s response over several future time steps.
• MPC applied in Rolls-Royce Trent 1000 engines enables rapid adaptation to fast-changing conditions.

4. Artificial Intelligence-Based Control (ANFIS, NARX)

• Predicts variable engine parameters.
• Offers advantages in emission reduction, fuel optimization, and rapid transition conditions.
• Models trained with ANFIS and NARX develop control decisions predictively.

Testing and Validation Environments

The developed software must be validated at various testing levels. The following methods are used for this purpose:

• SIL (Software-in-the-Loop): Embedded software is tested on a PC using virtual sensors.
• HIL (Hardware-in-the-Loop): Software running on actual hardware is tested under simulated flight conditions.
• Avionics Simulation Systems (AVIONSTS): Real flight dynamics, throttle commands, and environmental variables are simulated.
• EMI/EMC tests: The software’s tolerance to electromagnetic interference is verified.

Compliance with Certification Standards

The software development process is conducted in accordance with aviation authority standards DO-178C (software safety assurance) and ARP 4754A (system development). Under these requirements:

• Functions are categorized by safety criticality (DAL-A: highest criticality level).
• Traces are maintained for each function’s requirements, design, code, test, analysis, and validation.
• Automated test infrastructure enables early detection of software errors.

Certification Process and Standards

Since FADEC systems perform vital engine control functions, their hardware and software must meet the highest levels of reliability and safety. Therefore, the design, manufacturing, testing, and commissioning processes of FADEC systems are regulated by stringent certification protocols and international standards.

The certification process aims to document that the system meets both functional safety and airworthiness criteria. It does not merely verify whether the software works, but also under what conditions, how it operates, how it responds to faults, and how it achieves systematic safety objectives.

Certification Authorities and Regulatory Bodies

Certification of FADEC systems is primarily conducted by the following regulatory bodies:

• FAA (Federal Aviation Administration) – USA civil aviation authority of the United States.
• EASA (European Union Aviation Safety Agency) – Central aviation safety authority of the Europe Union.
• RTCA (Radio Technical Commission for Aeronautics) – Produces technical standards for the FAA.
• EUROCAE (European Organisation for Civil Aviation Equipment) – Technical body that defines standards for EASA.

The technical standards accepted by these authorities serve as reference documents that must be followed during the development of FADEC software and hardware.

Critical Standards

The key technical standards considered during FADEC certification are as follows:

RTCA DO-178C / EUROCAE ED-12C – Software Certification

• Applied during the software development process.
• Based on classifying system functions according to safety impact. These classes are ranked from “Design Assurance Level (DAL)” A to E:
• • DAL A: Failure causes catastrophic consequences (e.g., engine shutdown due to FADEC failure).
  • DAL B-C: Moderate safety risks.
  • DAL D-E: Non-critical or monitoring functions.
• DAL A software requires high traceability and verifiability across all processes from requirement definition to coding, integration, testing, analysis, and validation.

RTCA DO-254 / EUROCAE ED-80 – Hardware Certification

• Applies to programmable electronic hardware in FADEC (FPGA, CPLD, microcontroller).
• The same DAL levels apply to hardware components.
• Traceability of requirements at the hardware level, analysis of failure modes, and validation tests are mandatory.

ARP4754A – Systems Engineering and Certification Process

• Defines the position of FADEC systems within the overall aircraft system, their interactions, and safety requirements.
• Functional requirements are transferred from system level to subsystems, with traceability and validation performed within this framework.

ARP4761 – Safety Analysis

• Used to determine the impact of FADEC system failures on system performance.
• Mandates the use of techniques such as FHA (Functional Hazard Assessment), FMEA (Failure Modes and Effects Analysis), and FTA (Fault Tree Analysis).
• The system must be evaluated and shown to be tolerant to both individual failures and combined multiple failure scenarios.

MIL-STD and FAA AC Documents

• Military standards such as MIL-F-9490 define FADEC reliability and fault tolerance levels.
• FAA AC 33.28 and similar advisory documents specify FADEC system electromagnetic compatibility (EMC) and EMI immunity requirements.

Certification Process Steps

FADEC certification generally consists of the following stages:

1- Definition of Functional Requirements:

The system is defined by flight modes. The specific functions of the FADEC are clearly determined.

2- Safety Assessment:

FHA/FMEA/FTA methods analyze the possible effects of FADEC failures and assign a DAL level.

3- Development Process and Traceability:

Under DO-178C/DO-254, end-to-end traceability is ensured from requirements to test results for all software and hardware components.

4- Validation and Testing:

SIL (Software-in-the-loop), HIL (Hardware-in-the-loop), EMI/EMC tests, high temperature, moisture, vibration, and voltage conditions are applied to test the system.

5- Independent Audit and Review:

FAA/EASA representatives or independent verification organizations audit the project process, documentation, test results, and fault logs.

6- Flight Test and Approval:

The developed FADEC system is tested under real flight conditions on a prototype aircraft. Certification is completed if safety and performance criteria are successfully met.

Special Cases: Fault Tolerance and Redundancy

The certification process encourages the design of FADEC systems with fault-tolerant architectures. To this end, applications such as dual ECU (dual redundant control), TMR (Triple Modular Redundancy) architectures, cyclic error control (EDAC, CRC), and self-testing software processes (BIST) must be integrated into system design.

Additionally, the assumption of “perfect-from-start” is abandoned, and the impact of latent faults and incomplete repairs during flights is modeled and incorporated into certification.

Modern Control Methods

FADEC systems are equipped with advanced control algorithms to ensure that the engine operates at optimal performance and safely under all conditions. The limitations of traditional PI/PID controllers and the highly variable, nonlinear nature of engine performance have made the use of more modern, adaptive, and predictive control approaches necessary in FADEC systems.

Modern control methods not only balance engine performance but also achieve multiple objectives such as emission reduction, fuel consumption optimization, fault tolerance, and rapid adaptation to flight conditions.

Traditional Control Methods and Limitations

Traditional PID (Proportional-Integral-Derivative) controllers are preferred in FADEC systems, particularly under steady-state conditions and low dynamic requirements. For example, PID control is widely used in small turbojet engines. Advantages include simplicity of implementation and low computational cost.

However:

• They can cause instability in complex and nonlinear engine behaviors.
• Response time may be insufficient during transitions between flight modes (e.g., from takeoff to cruise).
• They cannot simultaneously manage multiple objectives such as emission control or fuel optimization.

Due to these limitations, more advanced control algorithms have been developed.

Optimal Control Methods

LQR (Linear Quadratic Regulator)

LQR operates using a quadratic cost function to maintain engine system stability while minimizing control effort. LQR use in FADEC is particularly effective in regimes dominated by linear models.

• Advantage: Can be designed with well-defined performance criteria.
• Disadvantage: Relies on linear system assumptions, which may not cover the entire engine operating envelope.

LQG / LTR (Linear Quadratic Gaussian / Loop Transfer Recovery)

LQG is an advanced form of LQR and is suitable for systems with random noise (white noise) and measurement errors. With LTR, system fault tolerance is enhanced to minimize performance loss. When integrated into FADEC software, it better manages uncertainties in engine dynamics.

• Application: Preferred in FADEC systems operating with noisy sensor data.
• Example: High-altitude-low-density scenarios, partial sensor failures.

Model-Based Predictive Control (MPC)

Model Predictive Control (MPC) makes decisions based on predicting the engine’s future behavior. In each control cycle, an optimization algorithm simulates the system’s response over a defined time horizon and applies constrained optimization.

Application Features:

• Real-time optimization.
• Multiple constraints such as fuel consumption, turbine temperature, and torque limits can be handled simultaneously.
• Decision-making considers “future” rather than “current” conditions.

Artificial Intelligence and Data-Driven Approaches

In modern FADEC research, learning algorithms are increasingly used to predict and control both linear and nonlinear engine behaviors. These methods are beginning to replace classical approaches in complex, multivariable, and highly target control problems.

ANFIS (Adaptive Neuro-Fuzzy Inference System)

• Combines artificial neural networks and fuzzy logic systems.
• Can automatically select control strategies based on flight regime in FADEC systems.
• Effective in applications such as emission prediction, fuel consumption modeling, and transient regime optimization.

NARX (Nonlinear Autoregressive with Exogenous Input)

• Predicts the system’s future state based on past outputs linked to inputs.
• Suitable for nonlinear and dynamic systems.
• Predicts engine response and provides instant decisions during flight regime transitions (e.g., sudden throttle increase).

Hammerstein-Wiener Models

• The system is modeled as a combination of static nonlinear and dynamic linear blocks.
• Can be integrated into FADEC systems to provide foundational data sets for controllers such as MPC or ANFIS.

These models enable simultaneous optimization of multiple objectives such as emission reduction, engine safety, and fuel efficiency.

Multi-Objective Optimization

Modern control algorithms are designed to make decisions based on multiple objectives (power, emissions, reaction duration, fuel consumption) rather than a single performance metric. In this context, evolutionary optimization techniques such as Genetics Algorithms (GA) are also used in FADEC control strategies.

Optimization Criteria:

• Minimization objectives: CO₂, NOₓ, fuel flow rate, throttle delay.
• Constraints: Turbine inlet temperature, maximum engine speed, compressor pressure ratio.

Fault-Tolerant and Adaptive Control

Modern FADEC systems are supported by fault-tolerant control structures that maintain system stability and safety in the presence of sensor failures, actuator deviations, or environmental uncertainties.

• Reconfigurable control structures: Isolate faulty components and continue operation with the remaining system.
• Self-learning systems: Adapt to new conditions during flight.

These approaches carry critical importance in environments more sensitive to failures, such as single-engine platforms.

Simulation and Ground Test Environments

For FADEC systems to be safely used in flight, comprehensive validation, verification, and testing during development are critical. Simulation and place test environments enable systematic evaluation of how FADEC will perform under pre-flight scenarios.

These test environments allow both normal and abnormal operating conditions to be safely and controllably recreated. This enables the algorithmic accuracy, system safety, fault tolerance, and environmental compatibility of FADEC to be tested and verified before flight readiness.

Importance and Purpose of Simulation Environments

Simulation environments serve three primary purposes in the FADEC development process:

• Early validation of control algorithms (model-in-the-loop): The feasibility of developed control laws is analyzed on theoretical engine models.
• Pre-hardware testing of software behavior (software-in-the-loop / SIL): Software modules running on a computer replace actual FADEC hardware for testing.
• Testing hardware under real-world scenarios (hardware-in-the-loop / HIL): Actual hardware components such as ECU and HMU are integrated with software-modeled engines and aircraft systems for testing.

Simulation environments use mathematical engine models that simulate engine dynamics, sensor feedback, and control inputs over time. These environments enable the early detection of conditions that threaten flight safety.

Avionics Simulation Software Architectures

Avionics Simulation Test Systems (AVIONSTS) specifically developed for FADEC software run control software using software-based engine models that replace the actual engine. These systems use a multi-layered software architecture consisting of:

• Data Interface Layer: Communicates via protocols such as RS422, MIL-STD-1553B, and ARINC429.
• Hardware Abstraction Layer: Imitates functions of the actual system hardware.
• System Model Layer: Dynamical aspects such as fuel flow, rotor speed, and temperature are represented mathematically.
• Simulation Control Layer: Executes test scenarios and generates fault injection and transition scenarios.
• Monitoring and Logging Layer: Records and analyzes system behavior in log files.

These structures simulate the pre-flight behavior of FADEC software with high accuracy while also enabling evaluation of real-time fault scenarios.

Ground Test Environments and Components

Beyond software testing, FADEC systems must be evaluated in ground test systems using actual hardware components. A ground test environment allows the FADEC to operate in a setting that electronically simulates engine dynamics without direct connection to the engine.

A typical ground test environment includes the following components:

• EUT (Equipment Under Test): Actual FADEC hardware (ECU, HMU, sensor connections).
• Engine Simulation Module: Generates outputs such as fuel flow, rotor speeds (N1/N2), temperature, and torque.
• Test Control Unit: Initiates test scenarios and ensures synchronization.
• Feedback Simulators: Simulate data from sensors.
• Strip Chart Recorders and Data Acquisition Systems: Enable real-time monitoring and recording of analog and digital outputs.

EMI / EMC and Radiation Tests

Since aircraft operate in electromagnetically noisy environments, FADEC systems must be tested for electromagnetic interference (EMI) and electromagnetic compatibility (EMC).

Test Conditions:

• Frequency range: 10 kHz – 40 GHz
• Field strength: Exposure up to >1000 V/m
• Test environment: Reverberation chamber – provides a more homogeneous field compared to anechoic chambers
• Test criterion: According to FAA AC 33-28 draft, “no effect” – even 1–2% power deviation is considered a “failure.”

During testing, the FADEC operates in closed loop and its performance outputs are monitored for any anomaly.

Fault Injection and Failure Scenarios

Ground test systems also allow deliberate injection of various faults into the FADEC system and monitoring of the system’s response:

• Sensor data interruption or deviation
• Throttle location sensor failure
• Fuel flow feedback wrong
• Sudden change in engine torque
• Dual-channel data inconsistency

Testing these scenarios verifies whether the FADEC system’s fail-safe, fail-operational, or reconfiguration safety modes function correctly.

Pre-Flight Integration

After passing all software and hardware tests, the FADEC system is tested on a static test stand with the engine prototype. It is then integrated into the aircraft platform for flight testing. This process includes the following steps:

1. The FADEC is operated on the engine integration test stand.
2. Aircraft ground runs are performed.
3. The first flight test is conducted simultaneously with data recording and analysis.

All prior simulation and ground tests aim to minimize the likelihood of FADEC system failures during flight testing.

Electromagnetic Compatibility and Immunity Tests

FADEC systems consist of high-sensitivity electronic subsystems responsible for engine control. Due to the complex and high-density electromagnetic environments of aircraft, these systems must be specifically tested for electromagnetic interference (EMI). The purpose of these tests is to verify that the FADEC system continues to operate safely, accurately, and predictably in electromagnetic environments.

Electromagnetic compatibility (EMC) and immunity tests are comprehensive procedures that evaluate both the emitting and susceptible aspects of FADEC systems.

Purpose and Importance of Tests

Electromagnetic tests assess the FADEC’s resilience against the following risk scenarios:

• External electromagnetic sources (e.g., radars, radio transmitters, antennas)
• Interaction with high-power RF systems on the aircraft (e.g., HF/VHF/UHF communications, radar systems)
• Energy leakage through openings and cable networks on the Body
• Feedback from noisy power and data lines
• Differential and common mode disturbances caused by grounding, cabling, and connector faults

Under these conditions, FADEC may experience deviations, interruptions, resets, or erroneous fuel control commands. Therefore, electromagnetic tests make it mandatory to consider FADEC as a critical component for flight safety.

Test Environments: Anechoic vs Reverberation Chambers

Traditional EMI/EMC tests were conducted in anechoic chambers (environments that absorb EM waves), but reverberation chambers (reverberation chambers) are now preferred for testing complex closed-loop systems like FADEC.

Advantages of Reverberation Chambers:

• Test capability over a wide frequency range (up to >40 GHz)
• Shorter test duration and higher field strength generation capacity
• More realistic simulation of effects on closed-loop systems like FADEC
• Consistency in test repeatability due to more homogeneous field distribution

In a typical test, the FADEC system was exposed to electromagnetic field intensities exceeding 1000 V/m, and deviations in its analog/digital outputs were monitored. In such tests, +/- 1–2% power deviation is considered a functional failure.

Test Scope and Applied Standards

Electromagnetic tests applied to FADEC systems are based on both civil and military aviation standards:

Civil Standards:

• FAA Advisory Circular AC 33-28 (draft): FADEC EMU/EMI test guide; defines the “no effect” criterion.
• RTCA DO-160G: Defines environmental EMI/EMC test criteria.

Military Standards:

• MIL-STD-461: Military test levels for RF emission and immunity
• ADS-37A-PRF (Aeronautical Design Standard): Defines radiated susceptibility levels between 10 kHz and 40 GHz.

Test Scenarios:

• Radiated Susceptibility (RS): System immunity to RF energy in air
• Conducted Susceptibility (CS): RF effects on FADEC via power cables
• Radiated Emissions (RE): Electromagnetic noise generated by FADEC itself
• Conducted Emissions (CE): Impact of signals radiated through cables on other systems

Test Structure and Equipment

Typical equipment and setup components used in electromagnetic tests include:

• Equipment Under Test (EUT): FADEC system including ECU, HMU, and sensor connections
• High-power RF generators: Generate signals in the 10 kHz–40 GHz range
• Field monitors and probe sensors: Measure electromagnetic field strength and homogeneity
• Test cables: Must have the same shielding properties as aircraft cables
• Analog/digital monitoring systems: Analyze FADEC outputs in real time
• Strip chart recorders: Physically monitor deviations, faults, resets, and out-of-tolerance values.

Using this equipment, the system’s operating point (e.g., throttle position, fuel flow) is monitored to detect any out-of-tolerance deviations.

Test Criteria: Definition of “No Effect”

The test validity criterion recommended by FAA Advisory Circular 33-28:

"No effect on the functional characteristics of the system shall be observed during EME exposure."

This criterion is practically implemented as follows:

• Any deviation of 1–2% in engine control command or power output is considered “effect present.”
• Analog signal outputs are monitored within +/- 40 mV to +/- 100 mV; deviations beyond this range are critical.
• The FADEC operating point must remain stable throughout the test, with no resets, error codes, or command drifts.

Electromagnetic Compatibility Design Measures

To achieve successful results in EMI/EMC tests, the following design measures are applied in FADEC system design:

• Use of shielded twisted pair cables
• Grounding and star-point bağlama
• Galvanic isolation of different power sources
• EMI filters, ferrite cores, and transient suppressor circuits
• Internal software mechanisms such as “watchdog” and “input range check”

These design measures enable FADEC systems to operate reliably both in test environments and under real flight conditions.

Fault Types and Impact Classifications

Faults that may occur in FADEC systems are generally classified into three categories:

Latent faults are considered particularly critical because they may not be detected during system tests before flight. This situation is clearly observed in phased mission modeling where the “perfect from start” assumption proves inadequate.

Failure Modes and Effect Analysis (FMEA / FHA)

Among the most commonly used methods for reliability analysis in FADEC systems are:

1. FMEA (Failure Modes and Effects Analysis)

• Failure modes of each component are identified.
• The impact of each failure on FADEC functions is evaluated.
• Failure frequency, detectability, and impact are scored to calculate the Risk Priority Number (RPN).

2. FHA (Functional Hazard Assessment)

• The impact of partial or complete loss of specific functions on flight safety is analyzed.
• Possible consequences of FADEC function loss include thrust loss, uncontrolled acceleration, or engine shutdown.

3. FTA (Fault Tree Analysis)

• The underlying root causes of system failures are modeled graphically.
• The failure probability of the system is calculated by tracing the Probability flow from top to bottom.

These analyses are also used to determine the Design Assurance Level (DAL) assigned to FADEC components. For example, a failure that could cause engine shutdown is classified as DAL A and subject to the strictest software validation processes.

Markov-Based Reliability Modeling

Markov models are widely used to analyze the time-dependent failure behavior of FADEC systems. This approach is particularly effective for systems that are non-repairable, redundant, or operate in phased missions.

With Markov Modeling:

• The system is divided into specific states such as “operating,” “standby,” “fault,” and “repair.”
• Transition probabilities between states are defined (λ: failure rate, µ: repair rate).
• The probability distribution of the system’s state over time is calculated.
• Realistic conditions such as latent faults and incomplete repairs can be included in the model.

For example, in studies on the RM12 engine (JAS 39 Gripen), two different FADEC architectures were analyzed:

• Dual-channel “hot standby” architecture
• Triple-channel “Triple Modular Redundancy (TMR)” structure

Both architectures included latency, coverage, and reconfiguration times in the model, and it was found that the TMR architecture offered lower failure probability.

State-Part Method for Reliability Assessment

Another modern approach, the state-part method, analyzes FADEC system subcomponents by classifying them according to their functions. In this method, each component is assigned to one of the following categories:

• Alarm State (A): System continues operating despite fault.
• Transition to Mechano-Hydraulic Backup (H): Mechanical backup control engages upon electronic failure.
• Shutdown State (S): Fault causes complete system shutdown.

This method, unlike classical series-parallel system analyses, is based on functional dependency. System reliability is calculated as the weighted sum of these piece groups.

Fault Tolerance and Redundancy Strategies

To enhance reliability, the following measures are commonly implemented in FADEC systems:

• Dual-Channel ECU (Dual Redundant): If one channel fails, the other takes over.
• Triple Modular Redundancy (TMR): All three channels perform the same operation; the majority result is used.
• Concurrent Error Detection Mechanisms (CEDM): Simultaneous error detection in processor flow, input/output units, and Memory.
• Built-in Test (BIT): Automatic fault scanning and recording before and during flight.

The purpose of these structures is not only to detect faults but also to ensure uninterrupted flight. Particularly in TMR architecture, if one channel produces an error, the system continues using the majority vote of the remaining two channels and isolates the faulty faulty channel.

FADEC Use in General Aviation

FADEC systems were originally developed as high-tech engine control solutions for large commercial passenger aircraft and military jet engines. However, due to hardware miniaturization, reduced software costs, and increased reliability, FADEC systems are increasingly being adopted in General Aviation (GA) platforms.

Fixed-wing piston-engine aircraft, small turbojet-powered training aircraft, unmanned aerial vehicles (UAVs), powered gliders, very light aircraft (VLAs), and civil aviation training systems are now candidates for FADEC integration.

Reasons for the Growing Adoption of FADEC in General Aviation

The following technical and operational advantages support the preference for FADEC in general aviation:

• Automatic fuel injection and air-fuel mixture control: Eliminates need for manual carburetor or enrichment systems; reduces pilot workload.
• Automatic transition between flight modes such as takeoff, cruise, and landing: Engine behavior is optimized according to flight regime.
• Automation of engine start, cool-down, and shutdown procedures: Prevents failures caused by incorrect start procedures.
• Software-based engine protection algorithms: Protection is provided against maximum RPM, TBO (Time Between Overhaul), and EGT (Exhaust Gas Temperature) limits.
• Fault diagnosis, maintenance ease, and data logging infrastructure: FADEC systems continuously monitor engine behavior and record pre-failure indicators.

For these reasons, FADEC systems are increasingly preferred not only in large jets but also in less complex and lower-cost aircraft.

FADEC Applications in Piston-Engine Aircraft

The use of FADEC systems in piston-engine aircraft is rapidly increasing. Manufacturers such as Continental and Lycoming now offer FADEC solutions for piston engines:

1. Continental PowerLink™ FADEC:

• Provides full electronic fuel injection and ignition control for FADEC-enabled piston engines.
• Operates with a single throttle lever; no mixture adjustment or enrichment is required.
• Simplifies piloting with the “Single lever power control” principle.

PowerLink Continental IOF-240 engine (Credit: Aero News Network)

2. Lycoming iE2™ FADEC:

• Dual-channel FADEC architecture developed by Lycoming for its modern piston engine platform.
• Provides digital engine control along with engine temperature, EGT, and torque management.
• Widely used in UAV applications and advanced training aircraft.

Lycoming iE2 Engine (Credit: Lycoming)

Thanks to these applications, pilots can focus on flying rather than engine internal behavior. Additionally, engine life, fuel efficiency, and maintenance cycles are improved.

Use in Small Turbojet Engines and Training Systems

Another growing application of FADEC in general aviation is in small-scale turbojet engines. These engines, used in training, research, and civil UAV systems, have low thrust ratings (typically <1500 N). FADEC integration provides the following advantages:

• Provides flight-appropriate control using PID-based basic control algorithms.
• Enables recording of engine performance and tracking of flight characteristics for training purposes.
• Feedback loops and safety limits can be defined in software.
• High-temperature, pre-heating, and cooling scenarios are managed under control.

For example, the FADEC architecture developed for the TKT-1 training turbojet engine provides a low-cost, simplified control environment using PID control algorithms and includes data collection and fault diagnosis functions.

FADEC Use in Unmanned Aerial Vehicles (UAVs)

UAV platforms are increasingly benefiting from FADEC technology. Particularly in long-range, high-altitude, or mission-critical UAV systems, FADEC offers the following advantages:

• Autonomous engine control in unmanned operations
• Ensures mission safety with redundant control channels
• Real-time transmission of engine data to ground control stations
• Ensures engine protection and fuel savings during long-duration flights

FADEC systems developed for UAVs are typically designed to be smaller, lighter, consume less power, and feature compact software architectures. They are also integrated using lightweight data communication protocols such as CAN-Bus.

Challenges and Limitations

Despite the growing adoption of FADEC in general aviation, some limitations and technical challenges persist:

Therefore, the widespread adoption of FADEC in the GA segment is often limited to specialized areas such as high-value training platforms, autonomous systems, and technology demonstrators.
